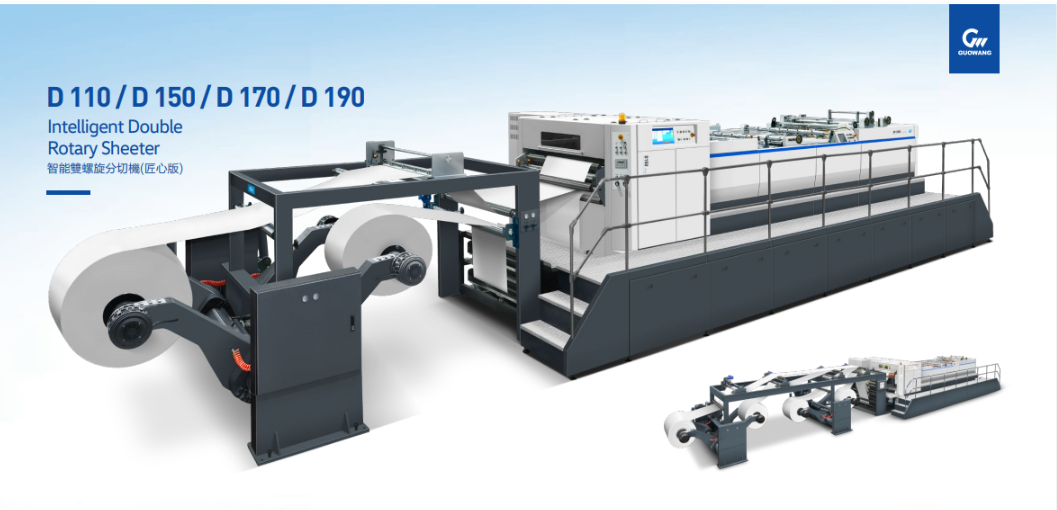

D 110 / D 150 / D 170 / D 190
Intelligent Double Rotary Sheeter

intelligent-double-rotary-sheet

The intelligent double rotary sheeter adopts German technology and combines many years of experience in producing paper cutters to develop new products with high precision, high efficiency and high stability. This product is widely used in cardboard, art paper, kraft paper, cultural paper, double offset paper, high-gloss photo paper, gold and silver cardboard, aluminum foil paper, laser paper, tobacco and alcohol packaging paper, etc.

Based on the target of improving the production efficiency for customers and optimizing the accuracy of products, it is equipped with high-quality cutting roller by avant-garde design and new technology, backlash-free gears, high-speed dynamic-balanced knife holders, British imported high-power servo system with energy storage cabinet and improved lubrication system to get more stable long-term precise cutting at high speed with lower noise; the high-definition LED touch screen with graphic direct-view interface design, dual-screen synchronization system for more convenient and comfortable operation; overall heightened body for more piling by each delivery.

Compared to the other products in the market, we bring the sheeter noble and unique features for high-grade clients not only through the configurations as above introduced, but also by entirely high-level design, processing, production and assembly. Moreover, there are richer settings to select: auto slitters positioning by servo system, auto waste ejection device, auto de-curler, up-down type paper pressing mechanism, etc.

HIGH-PRECISION
WORKABLE FOR THIN / THICK PAPER
DELIVERY HEIGHT

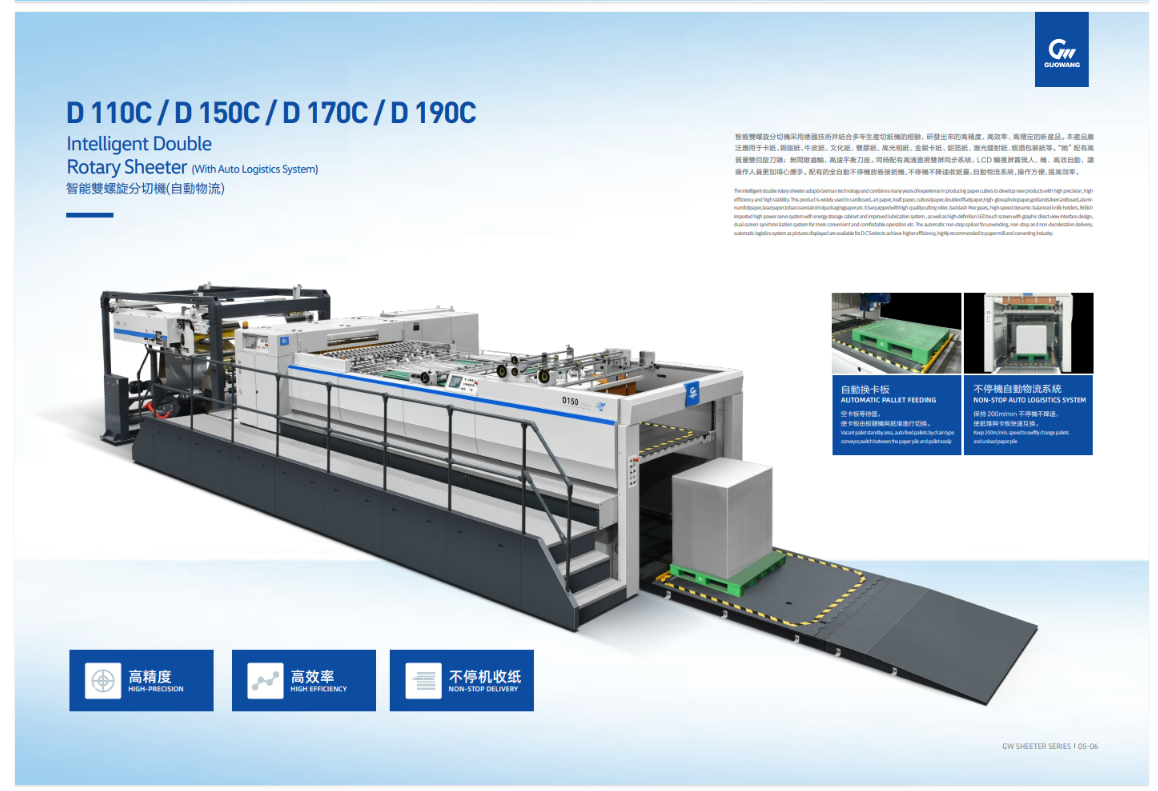

D 110C / D 150C / D 170C / D 190C
Intelligent Double Rotary Sheeter
(With Auto Logistics System)

Rugged-Displays-&-Computing-System

The intelligent double rotary sheeter adopts German technology and combines many years of experience in producing paper cutters to develop new products with high precision, high efficiency and high stability. This product is widely used in cardboard, art paper, kraft paper, cultural paper, double offset paper, high-gloss photo paper, gold and silver cardboard, aluminum foil paper, laser paper, tobacco and alcohol packaging paper, etc.

It is equipped with high-quality cutting roller, backlash-free gears, high-speed dynamic-balanced knife holders, British imported high-power servo system with energy storage cabinet and improved lubrication system, as well as high-definition LED touch screen with graphic direct-view interface design, dual-screen synchronization system for more convenient and comfortable operation etc.

The automatic non-stop splicer for unwinding, non-stop and non-deceleration delivery, automatic logistics system as pictures displayed are available for D-C Series to achieve higher efficiency, highly recommended to paper mill and converting industry.

Automatic Pallet Feeding

The vacant pallet standby area ensures smooth operation by automatically feeding pallets through a chain-type conveyor system. This setup allows for quick and effortless switching between the paper pile and the pallet, improving overall efficiency and reducing downtime.

Non-Stop Auto Logistics System

The system maintains a constant speed of 200m/min, enabling swift pallet changes and efficient unloading of paper piles. This high-speed operation ensures continuous workflow without interruptions, enhancing productivity and reducing delays.

HIGH-PRECISION
HIGH EFFICIENCY
NON-STOP DELIVERY

D 110 / D 150 / D 170 / D 190
Intelligent Double Rotary Sheeter
With Ink-jet (option)

This intelligent double rotary sheeter combines advanced technology and rich experience, is developed specially for ink-jet of bar-code, QR-code, administration code etc. on various package and material, and is widely used in cardboard, kraft paper, high-gloss photo paper, gold and silver cardboard, aluminum foil paper, laser paper, tobacco and alcohol packaging paper, etc.

To improve the production efficiency and optimizing the accuracy of cutting paper over 64gsm, it is equipped with high-quality cutting roller by avant-garde design and new technology, backlash-free gears, high-speed dynamic-balanced knife holders, 4 groups of independent de-curler to automatically adjust de-curling degree according to the paper roll status, British imported high-power servo system with energy storage cabinet and improved lubrication system to get more stable long-term precise cutting at high speed with lower noise; the high-definition LED touch screen with graphic direct-view interface design, dual-screen synchronization system for more convenient and comfortable operation; overall heightened body for more piling by each delivery.

Compared to the other products in the market, we bring the sheeter noble and unique features for high-grade clients not only through the configurations as above introduced, but also by entirely high-level design, processing, production and assembly. Moreover, there are richer settings to select: auto slitters positioning by servo system, auto waste ejection device, up-down type paper pressing mechanism, etc.

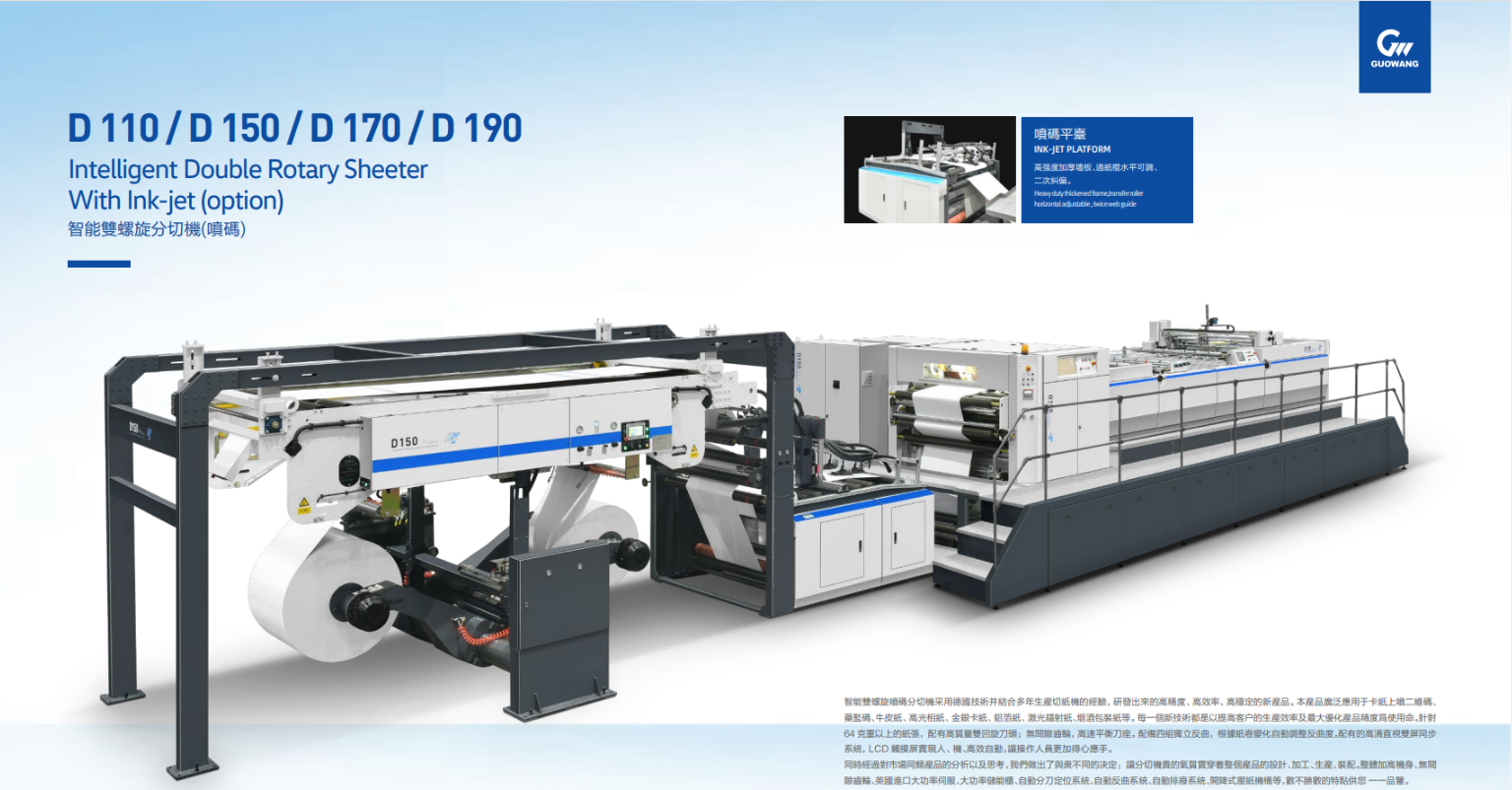

Ink-Jet Platform

  • The platform is built with a heavy-duty thickened frame that provides enhanced strength and stability.

  • It features a transfer roller with horizontal adjustability for precise paper handling.

  • A dual web guiding system ensures improved accuracy and smooth operation.

HIGH-PRECISION
HIGH EFFICIENCY

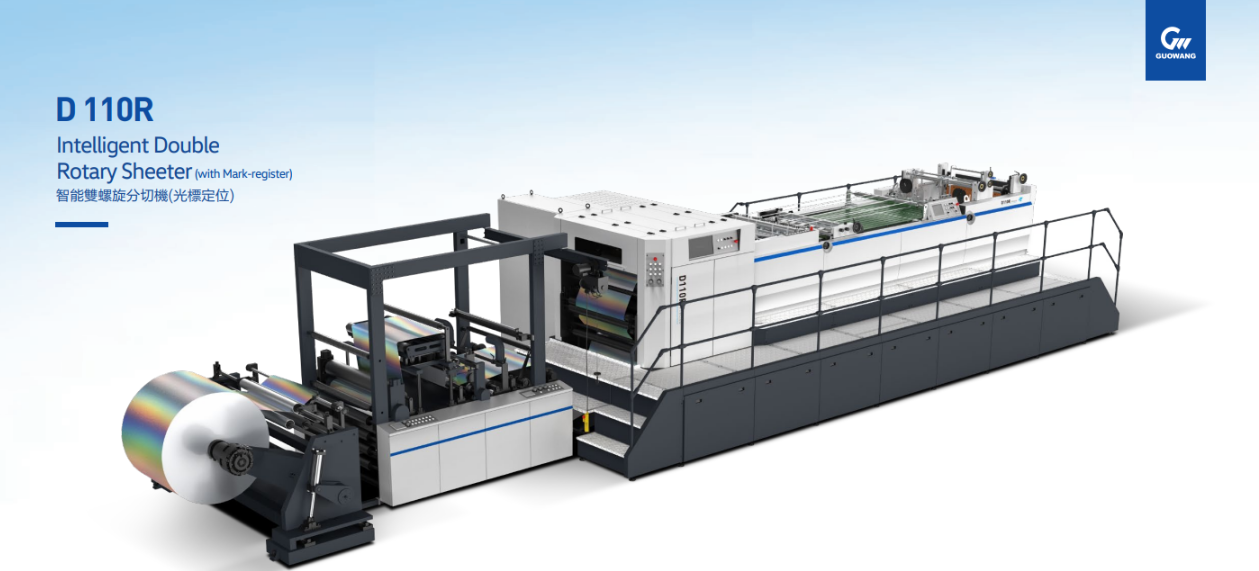

D 110R Intelligent Double Rotary Sheeter
(with Mark-register)

intelligent-double-rotary-sheeter-mark-registers-(ATE)

This intelligent double rotary sheeter combines advanced technology and rich experience, is developed specially for ink-jet of bar-code, QR-code, administration code etc. on various package and material, and is widely used in cardboard, kraft paper, high-gloss photo paper, gold and silver cardboard, aluminum foil paper, laser paper, tobacco and alcohol packaging paper, etc. To improve the production efficiency and optimizing the accuracy of cutting paper over 64gsm, it is equipped with high-quality cutting roller by avant-garde design and new technology, backlash-free gears, high-speed dynamic-balanced knife holders, 4 groups of independent de-curler to automatically adjust de-curling degree according to the paper roll status, British imported high-power servo system with energy storage cabinet and improved lubrication system to get more stable long-term precise cutting at high speed with lower noise; the high-definition LED touch screen with graphic direct-view interface design, dual-screen synchronization system for more convenient and comfortable operation; overall heightened body for more piling by each delivery.

Compared to the other products in the market, we bring the sheeter noble and unique features for high-grade clients not only through the configurations as above introduced, but also by entirely high-level design, processing, production and assembly. Moreover, there are richer settings to select: auto slitters positioning by servo system, auto waste ejection device, up-down type paper pressing mechanism, etc.

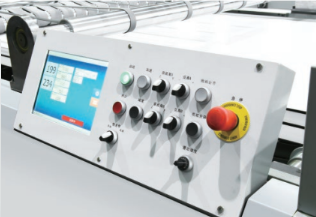

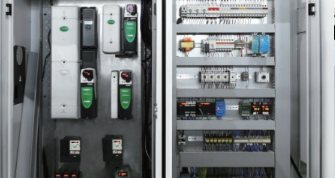

Electric Control Part

Using 19-inch industrial computer, British CT high-end high-power servo system, equipped with a software control system with independent intellectual property rights, the picture is harmonious, the display content is rich, and the operability is strong. High-efficiency high-power servo, combined with energy storage, effectively saves electric energy, improves economy, and truly achieves green and energy-saving.

Slitting part is optional

MIL-GRADE-COTS-Products

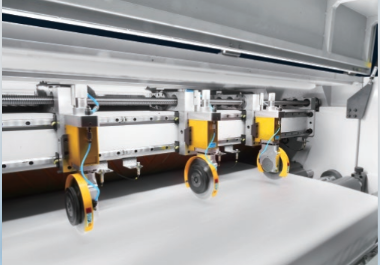

Servo control high-precision center splitting knife and trimming knife, realize automatic positioning, convenient adjustment, and improve efficiency. Two-stage automatic air pressure lowering and relying on the knife action to accurately adjust the cutting depth of the blade. The cutting structure of cutting reduces the paper powder while making the cut surface smoother.

Auto positioning (optional)

MIL-GRADE-COTS-Products

Automatic swift adjustment (50mm/s) by inputting paper parameters in touch screen

  • The paper unwinder is designed to securely hold and release the paper rolls, ensuring a stable supply and smooth feeding process throughout the entire operation.

  • The web guide sensor provides precise monitoring and correction of paper alignment, helping to maintain accuracy and prevent deviations during production.

  • The slitters are engineered to deliver clean and accurate cuts, allowing the paper to be trimmed into the required sizes with consistency and efficiency.

  • The decelerating pressing belt reduces paper speed steadily, ensuring proper tension control while minimizing the risk of wrinkles or surface damage.

  • Jogging plates, separating plates, and baffle plates work together to align, separate, and guide the sheets, resulting in improved handling and smoother overall workflow.

Main body

MIL-GRADE-COTS-Products

The main body of the main body adopts a casting structure and is made of high-quality nodular cast iron. The accuracy level is required to ensure the stability of the body, and the whole machine runs more stable and reliable.

Oil Lubrication System

MIL-GRADE-COTS-Products

The spray gear lubrication system is specifically designed to deliver a continuous and even supply of lubricant, ensuring that all gears remain fully lubricated throughout the entire operation, which helps reduce friction, minimize wear and tear, and maintain smooth and efficient machine performance.

Double Rotary Knife Set

MIL-GRADE-COTS-Products

Equipped with high-power and high-response British CT servo to ensure cutting accuracy and efficiency. The introduction of Taiwan’s advanced cutter head technology and a gap-free gear structure design can effectively eliminate the shaking gap of the two knives, ensuring the life of the blade and cutting accuracy. The box body is made of nodular cast iron. After aging treatment, it is processed by a 5-axis high-precision machining center at one time to ensure the accuracy and consistency of the product. The tool holder adopts an integral casting structure, which effectively guarantees the stability of the tool body during high-speed operation.

Reverse Bending System

MIL-GRADE-COTS-Products

The automatic recurve control system will automatically adjust the degree of recursion according to the change of the paper roll, so that the paper is flatter and the cutting is smoother.

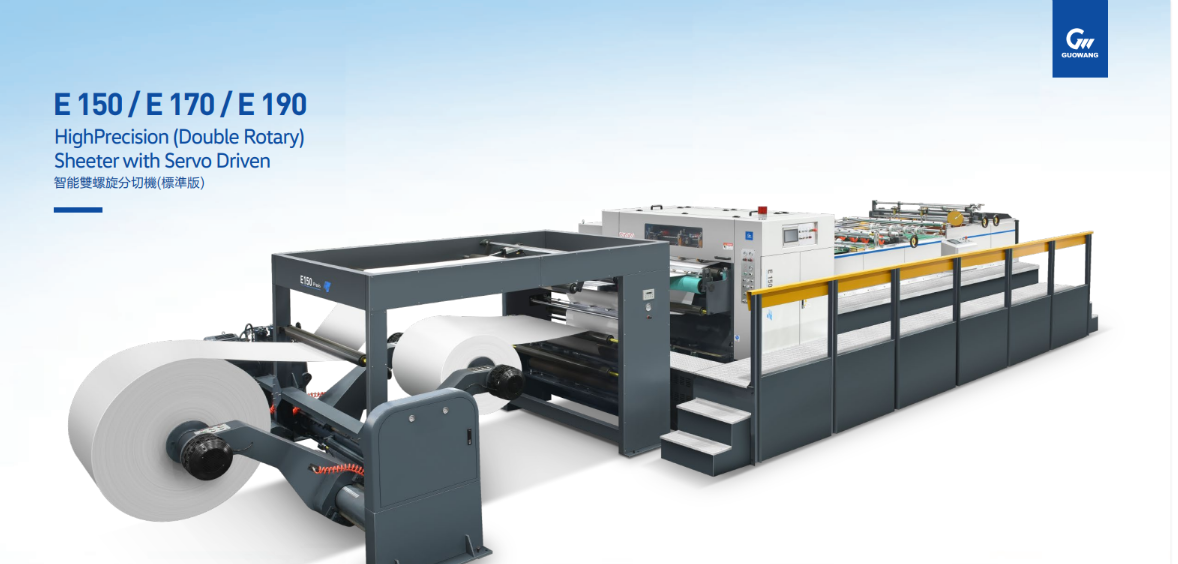

E 150 / E 170 / E 190
HighPrecision (Double Rotary)
Sheeter with Servo Driven

Flow-Formed-Tubes

The intelligent double rotary sheeter adopts German technology and combines many years of experience in producing paper cutters to develop new products with high precision, high efficiency and high stability. This product is widely used in cardboard, art paper, kraft paper, cultural paper, double offset paper, high-gloss photo paper, gold and silver cardboard, aluminum foil paper, laser paper, tobacco and alcohol packaging paper, etc.

Based on the target of improving the production efficiency for customers and optimizing the accuracy of products, it is equipped with high-quality cutting roller by avant-garde design and new technology, backlash-free gears, high-speed dynamic-balanced knife holders, Imported high-power servo system with energy storage cabinet and improved lubrication system to get more stable long-term precise cutting at high speed with lower noise.

The high-definition LED touch screen with graphic direct-view interface design, dual-screen synchronization system for more convenient and comfortable operation; overall heightened body for more piling by each delivery.

Compared to the other products in the market, we bring the sheeter noble and unique features for high-grade clients not only through the configurations as above introduced, but also by entirely high-level design, processing, production and assembly. Moreover, there are richer settings to select: pneumatic slitters system, auto waste ejection device, motorized de-curler, up-down type paper pressing mechanism, etc.

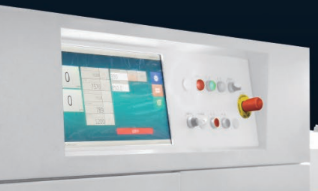

Electric Control Part

Using large-size industrial computer, INVT high-power servo system, equipped with a software control system with independent intellectual property rights, the picture is harmonious, the display content is rich, and the operability is strong. High-efficiency high-power servo, combined with energy storage, effectively saves electric energy, improves economy, and truly achieves green and energy-saving.

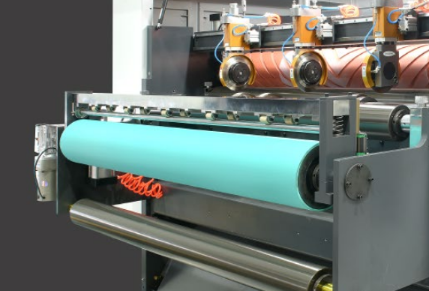

RUBBER ROLLER DE-CURLER (OPTIONAL)

MIL-GRADE-COTS-Products

Designed to handle high grammage and thick paper, the rubber roller de-curler ensures that sheets remain perfectly flat during processing. This not only improves de-curling efficiency but also enhances the overall quality and consistency of the final output.

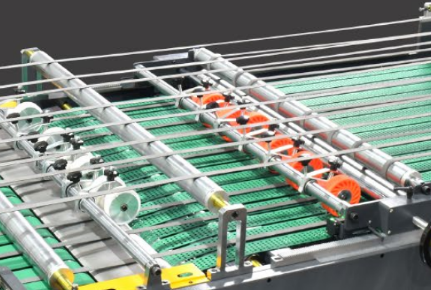

Vacuum Suction on Paper Edge (Optional)

MIL-GRADE-COTS-Products

By using vacuum suction on the paper edge, the system completely eliminates light spots that usually appear at low speeds with pressing wheels. This advanced method ensures smoother handling, better paper protection, and higher precision throughout the process.

Main Body

MIL-GRADE-COTS-Products

The main body is constructed with a robust casting structure made of high-quality nodular cast iron. This design provides exceptional stability and reliability, ensuring that the machine runs smoothly even under heavy workloads, delivering consistent performance over long-term use.

Oil Lubrication System

MIL-GRADE-COTS-Products

The spray gear lubrication system continuously delivers oil to the gears throughout the entire operation, ensuring they remain fully lubricated. This not only reduces wear and friction but also significantly extends the machine’s service life and ensures stable, efficient performance.

DOUBLE ROTARY KNIFE SET

MIL-GRADE-COTS-Products

Equipped with high-power and high-response British CT servo to ensure cutting accuracy and efficiency. The introduction of Taiwan’s advanced cutter head technology and a gap-free gear structure design can effectively eliminate the shaking gap of the two knives, ensuring the life of the blade and cutting accuracy. The box body is made of nodular cast iron. After aging treatment, it is processed by a 5-axis high-precision machining center at one time to ensure the accuracy and consistency of the product. The tool holder adopts an integral casting structure, which effectively guarantees the stability of the tool body during high-speed operation.

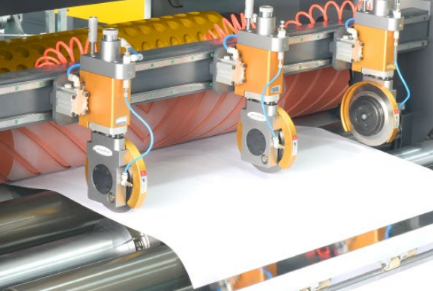

Pneumatic Slitting Part (Optional)

MIL-GRADE-COTS-Products

The pneumatic slitting part allows for convenient adjustment and precise positioning, ensuring accurate cutting performance. With its reliable pneumatic locking system, it provides firm stability during operation, making the process faster, safer, and more efficient.

High Cost-Efficiency
Practical Value
Focus on Demands

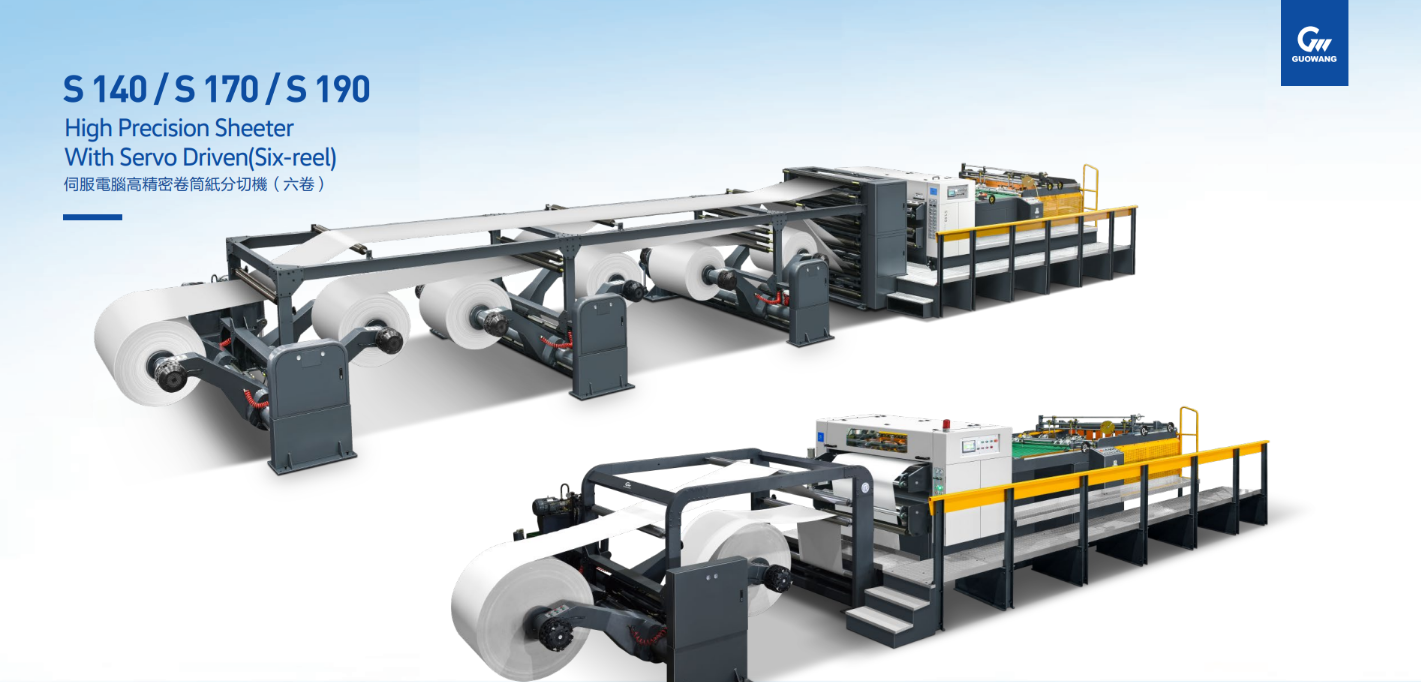

S 140 / S 170 / S 190
High Precision Sheeter With
Servo Driven (Six-reel & Two-reel)

S140 / S170 / S190 Servo driven precision sheerer applise advanced technology from England and servo system for control. With rich experience and leading manufacturing technique of senior engineers, it is a new generation machine of high accuracy and efficiency which is widely used in paper mill, printing and packaging industry for cutting cardboard, coated paper, kraft paper, photo paper, aluminum foil paper, packing paper etc.

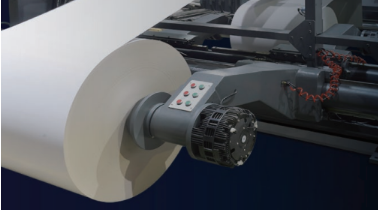

Shaftless base paper holder
and PLC tension control system

MIL-GRADE-COTS-Products

It adopts a multi-position control system, and automatically feeds back to the PLC control system through infrared distance measuring object etc. The tension of the base load is increased or decreased through the proportional valve, which can automatically control the tension of the paper, and can be fine-tuned through the man-machine interface.

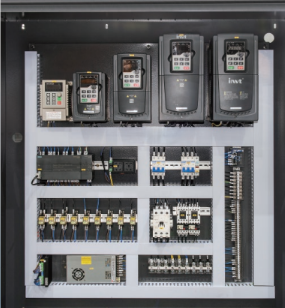

Electrical system

MIL-GRADE-COTS-Products

Using Siemens PLC and INT servo system, the machine achieves highly accurate positioning and precise cutting operations, ensuring consistency and reliability during production. The integration of Siemens touch screen technology provides a user-friendly interface, making operation smoother and more intuitive. Additionally, the improved ergonomic design of the interface enhances operator efficiency, reduces chances of error, and ensures easier monitoring and control throughout the process.

Three-component strip knife
for trimming and cutting

MIL-GRADE-COTS-Products

Shearing slitting knife set has the action of relying on the knife, which can accurately adjust the floating directions of the knife, and the knife set without tools. The cutting method has high positioning accuracy and meets the use of slitting for 3000m/min unwinding, which can reduce the cutting load and reduce vibration and noise during unwinding, improve production efficiency of finished products.

Cutting knife unit

MIL-GRADE-COTS-Products

  • Upper knife roller: The British cutter method is adopted to effectively reduce the load and noise during paper cutting, and to extend the life of the cutter. The upper knife roller body is loaded with stainless steel for precision machining and is dynamically balanced to effectively reduce high-speed operation vibration and noise.

  • Lower knife roller: The lower tool holder is made of cast iron integral molding, cast and then processed on a precision lathe, with good stability.

  • Active roller: The roller surface is designed with expansion lines, and the cylinder is used to control the pressure and paper clamping of the roller body.

  • Back-cutting knife: Made of special alloy steel, precision-machined, with long service life and easy adjustment of the blade.

  • Safety cover: Automatically shuts down when the safety cover is opened, ensuring safety.

Overlapping unit

MIL-GRADE-COTS-Products

The fast/slow speed belt controlled by variable frequency speed control can automatically track the knife speed, automatically adjust the speed belt, so that the paper can achieve perfect overlap.

Delivery unit

MIL-GRADE-COTS-Products

Automatic lifting system and three sides of the intermodulation of the delivery unit, coupled with the non-polar vibration of the flat paper mechanism, ensure smooth paper delivery.

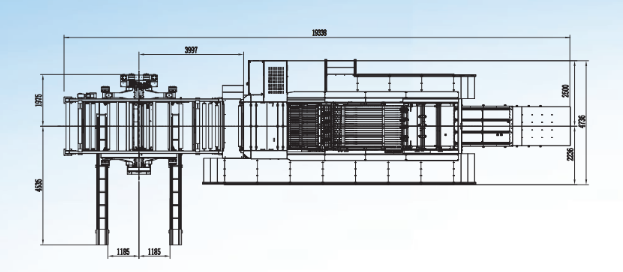

D series installation floor plan

MIL-GRADE-COTS-Products

D series standard configuration

  • Shaftless pivoting arm unwind stand

  • High precision single rotary sheet cutter

  • Squareness Adjustment System

  • Static Eliminator Device

  • Paper Conveyer System

  • Auto counting and Label inserter

  • Delivery and Auto Jogger System

  • Motorized de-curler

  • Auto-tension control

  • Main body steel structure

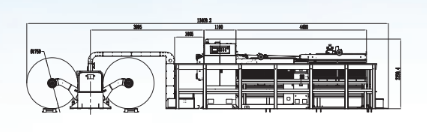

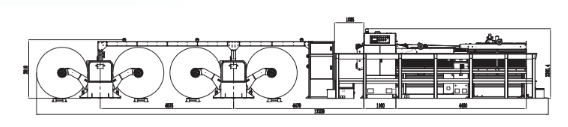

S series installation floor plan

S series standard configuration

  • Shaftless pivoting arm unwind stand

  • High precision single rotary sheet cutter

  • Squareness Adjustment System

  • Static Eliminator Device

  • Paper Conveyer System

  • Auto counting and Label inserter

  • Delivery and Auto Jogger System

  • Motorized de-curler

  • Auto-tension control

  • Main body steel structure

Options

  • Servo system for automatic slitter adjustment (Only for S series)

  • Rubber roller de-curler (Only for D series)

  • Vacuum suction on paper edge

  • Italy RE pneumatic brake for auto tension control

  • Cut-to-register

  • Customized mechanical chuck or universal conical chuck

  • Non-stop automatic paper splicer

  • Non-stop delivery

  • Automatic pallet feeding

  • Middle slitting and waste edge collecting system (Only for S series)

  • Auto-EPC (Edge paper control) (Only for S series)

  • Non-stop automatic logistics system

  • Ink jet device

  • Enlarged hydraulic cylinder for paper unwinder

  • Dust suction for slitter

  • Shredder blower for trimming waste

  • Dust removal after cutting

  • Blower and belts to assist delivery of thin paper

  • Cutting length to 2m

  • Swing cylinder for out of round paper roll

  • Safety relay for 2 channel redundant control

  • More options to select according to definite demands…

Specifications

Model Unit D110/D150/D170/D190 D110R E150/E170/E190 S140/S170/S190
Cutting type - Twin knife synchro-fly Twin knife synchro-fly Twin knife synchro-fly Top rotary knife, bottom fixed knife
Paper weight range gsm 150-1000 150-1000 150-1000 60-550
Maximum paper format mm 1100/1500/1700/1900 1100 1500/1700/1900 1400/1700/1900
Maximum web diameter mm 1800 1500 1800 1800
Cut-off length range mm 400-1700 400-1100 450-1650 400-1650
Cutting accuracy mm ±0.15 ±0.1 ±0.3 ±0.3
Maximum cutting speed m/min 300 300 300 300
Maximum number of cutting knives p/min 460 600 460 350
Delivery height (incl. pallet) mm 含托盘1700 含托盘1700 含托盘1500 含托盘1500
Main motor power kw 64 64 65 11
Total power kw 95/108/115 123 90 30
Gross weight kg 22000/24000/26000/28000 20000 14000/16000/19000 12000/13000/15000
Air source bar 6-8 6-8 6-8 6-8

Machine Speedometer

Length Unit D110 (m/min) D110 (cuts/min) D150/D170 (m/min) D150/D170 (cuts/min) D190 (m/min) D190 (cuts/min) E150/E170 (m/min) E150/E170 (cuts/min)
400 mm 210 525 300 450 114 285 125 281
450 mm 258 575 333 500 142 315 160 320
500 mm 300 540 375 450 185 370 195 390
550 mm 300 545 427 465 223 405 230 376
600 mm 300 500 375 468 250 418 265 397
650 mm 300 460 300 462 300 462 300 416
700 mm 300 428 300 429 300 429 300 386
750 mm 300 400 300 400 300 400 300 366
800 mm 300 375 300 375 300 375 300 337
850 mm 300 353 300 353 300 353 300 320
900 mm 300 333 300 333 300 333 300 300
950 mm 300 316 300 316 300 316 300 284
1000 mm 300 300 300 300 300 300 300 270
1100 mm 290 263 290 263 290 263 290 240
1200 mm 285 238 270 225 270 264 290 214
1300 mm 280 215 260 200 266 246 279 210
1400 mm 280 200 250 180 266 228 265 195
1500 mm 280 187 280 187 266 213 265 176
1600 mm 275 172 280 175 266 200 257 155
1700 mm 275 162 275 162 261 153 250 135
