GW-S CIP4

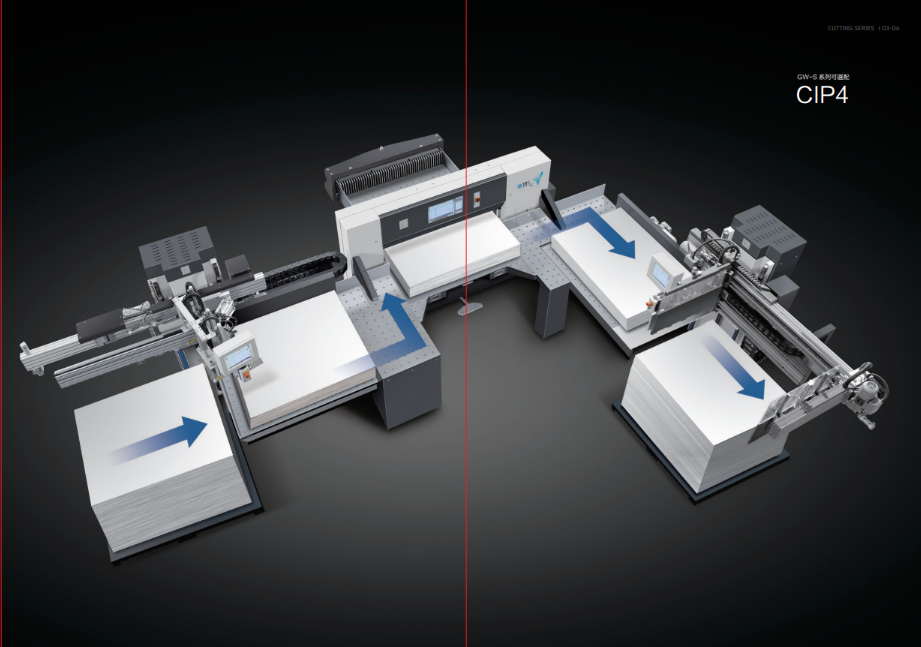

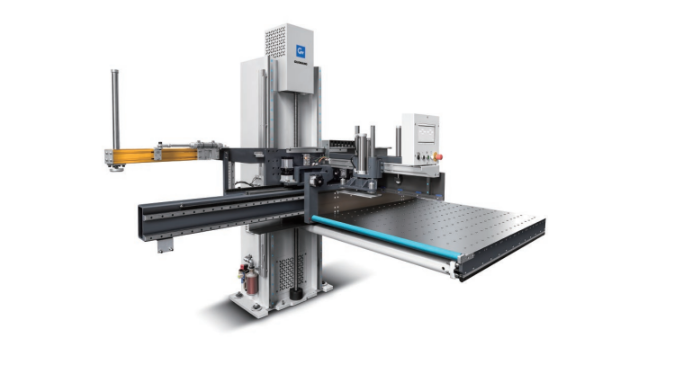

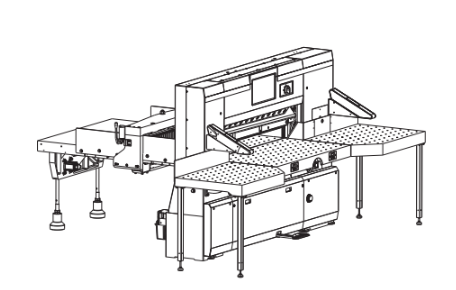

HIGH-EFFICIENCY CUTTING LINE

This cutting line consisting of paper cutter, intelligent loader and unloader is capable to automatically load, jog, transport and unload the paper.

It features the high efficiency, low labor intensity and short make-ready time.

We could customize the cutting line based on the demand of our clients.

GW-S CIP4

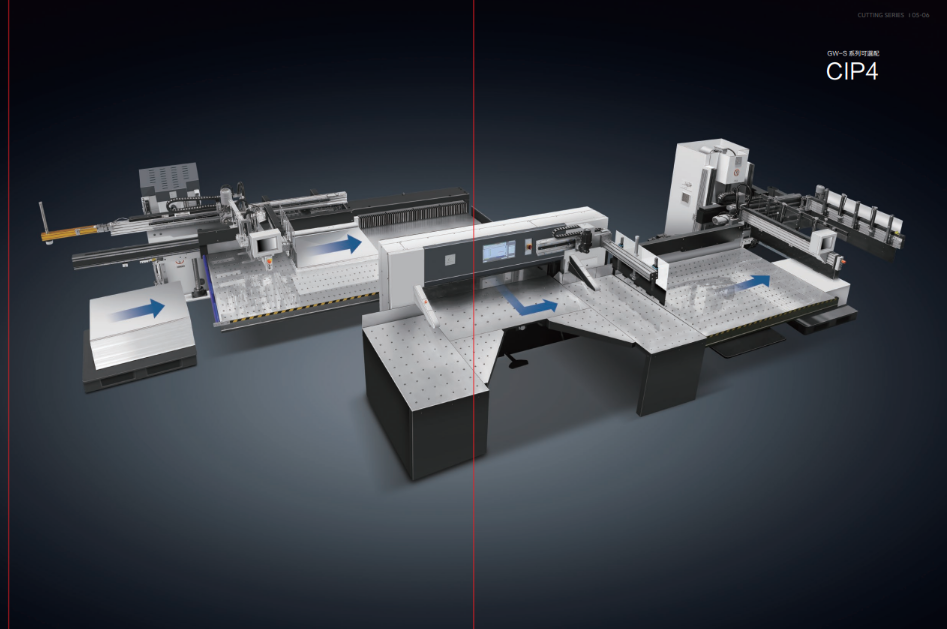

STRAIGHT BACK-FEEDING HIGH SPEED CUTTING LINE

Advantages of back feeding paper:

  • Release the operating space in front of the machine to make the operation more convenient. And the operating space will be bigger.

  • Greatly reduce the labor intensity of employees and improve work efficiency. For example, when cutting paper of large surface, it often takes two people to lift the paper stack at the same time. Generally, it takes 3–4 times to complete the movement of the 160mm paper pile, and the machine has to stop and wait. For the paper picking machine, the staff can cut the paper at the same time, a one-time stack of paper to the paper cutting machine.

  • Reduce the number of employees and labor costs. When large paper piles are normally operated, the factory usually has three employees, and the paper machine only needs 1 people.

  • The back-feeding machine can push the stack of paper completely into the back working platform of the paper cutter. Compared with the ordinary paper cutter, it can only push a part of the paper, and it will be more labor-saving and efficient to push the paper into the machine manually.

GGW-S CIP4

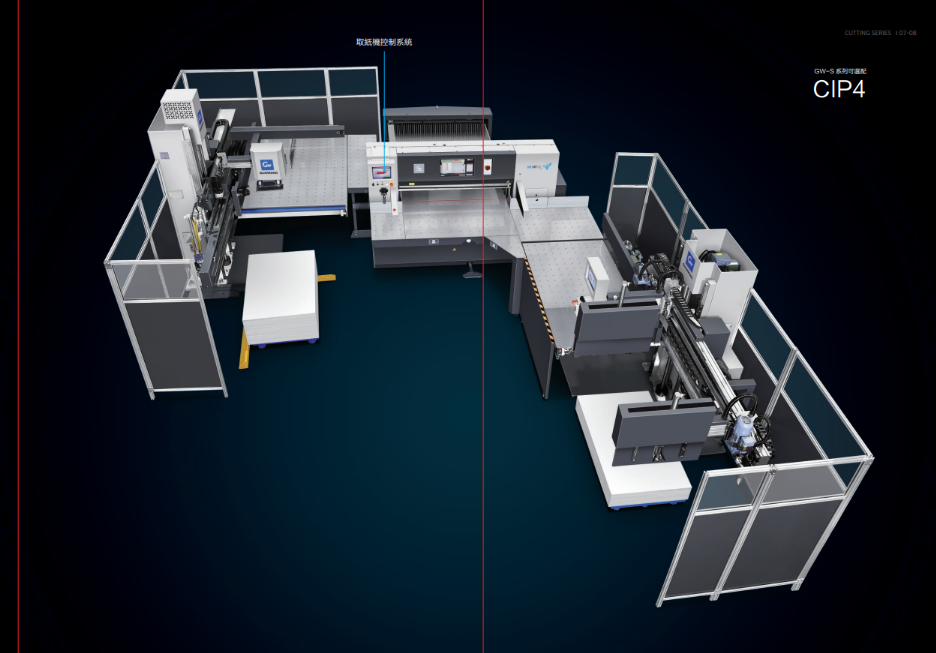

VERTICAL BACK-FEEDING HIGH SPEED CUTTING LINE

Features of New Generation Cutting Line System:

  • Flexible placement. According to the limited space of the site, customers can freely choose the way of placement to save space.

  • Reduce the rotation of paper after loading paper, reduce the labor intensity of employees, and improve the efficiency of paper cutting.

  • The whole machine adopts servo system, which improves the stability and accuracy of the system, and at the same time, it is more environmentally friendly and energy-saving.

  • The paper cutter body structure of the integrated gantry frame structure has greater strength.

  • 19-inch human-machine interface can preview and display the operation effect of cutting very well, which is convenient for user operation.

  • The paper cutter is equipped with a high-speed servo paper feeding mechanism, which improves the operation efficiency of the machine.

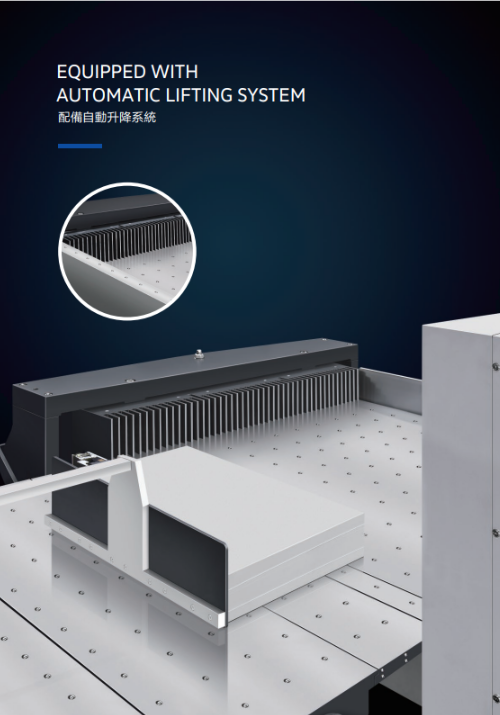

  • The side baffle structure of the lifting paper cutter is convenient for the user to arrange paper left and right during the cutting process, which is convenient and fast.

  • The whole line adopts high-quality Taiwan industrial computer, which runs stable and reliable.

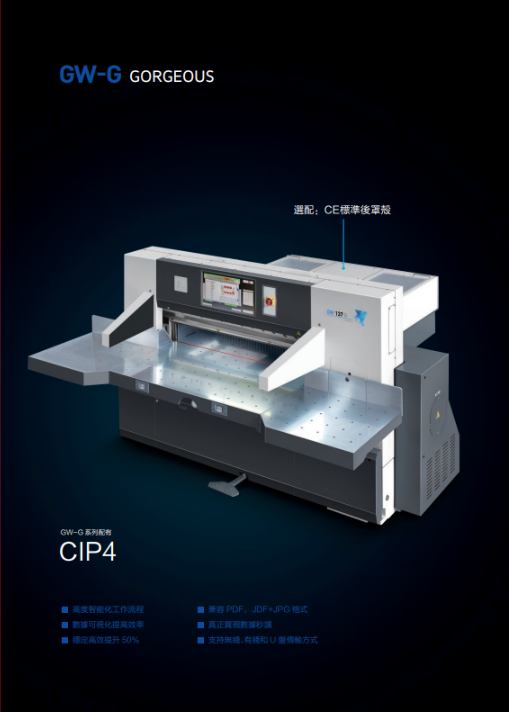

GW-G GORGEOUS 60 m/min
GW115/137/176G
HIGH PRODUCTION RATE

60M/MIN HIGH PRODUCTION RATE

ENJOY THE HIGH EFFICIENCY BROUGHT BY HIGH CONFIGURATION

Nowadays, with the rapid development of business plate making printing, the requirements for paper cutter and operators are higher and higher.

With the increase of workload and intensity, the error rate will increase during the operation.

In order to solve the above difficulties, our company has launched a G-Series paper cutter with super large 22 inch Industrial LCD screen and mature CIP4 function.

Configuration

Model GW115G GW137G GW176G
Size (cm) 115 137 176
22 inch screen 〇 〇 〇
Touch screen 〇 〇 〇
CIP4 〇 〇 〇
Memory 256M 1K/process 256M 1K/process 256M 1K/process
Back gauge speed 48m 〇 〇 〇
Double guide ball screw 〇 〇 〇
Chromed air table 〇 〇 〇
Large vice working table 1000 x 750mm △ △ △
Hydraulic clutch, Italy gear pump 〇 〇 〇
HSS blade 〇 〇 〇
Germany solenoid knife lock 〇 〇 〇
Automatic lubricating system 〇 〇 〇
On-line & USB program function available 〇 〇 〇
Optimized cutting 〇 〇 〇
Self diagnose system 〇 〇 〇
Clamp pressure programmable 〇 〇 〇
Rear table cover △ △ △
30KG safety pedal pressure 〇 〇 〇

〇 Configured , × Not configured , △ Option

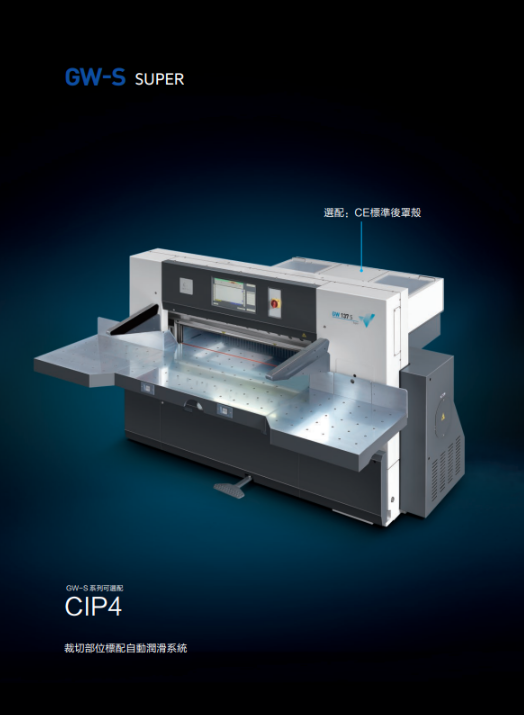

GW-S SUPER 48 m/min
GW115/137S

gw-super-high-production-rate

48M/MIN HIGH PRODUCTION RATE

ENJOY THE HIGH EFFICIENCY

BROUGHT BY HIGH CONFIGURATION

GW-S series paper cutting machine is the high level choice for the printing shops which is designed by German and Japan engineers.

This series adopt 19' touch screen, Yasukawa servo motor, bring the back gauge speed to 40m/min.

From the outlook to safety standards are all combined with the best Germany and Japanese technology.

Configuration

Model GW115S GW137S GW176S
Size (cm) 115 137 176
19 inch screen 〇 〇 〇
Touch screen 〇 〇 〇
CIP4 〇 △ 〇
Memory 256M 1K/process 256M 1K/process 256M 1K/process
Back gauge speed 40m 〇 〇 〇
Double guide ball screw 〇 〇 〇
Chromed air table 〇 〇 〇
Large ice working table 1000 x 750mm △ △ 〇
Hydraulic clutch, Italy gear pump 〇 〇 〇
HSS blade 〇 〇 〇
Germany solenoid knife lock 〇 〇 〇
Automatic lubricating system 〇 〇 〇
On-line & USB program function available 〇 〇 〇
Optimized cutting 〇 〇 〇
Self diagnose system 〇 〇 〇
Clamp pressure programmable 〇 〇 〇
Rear table cover △ △ △
30KG safety pedal pressure △ △ △*

〇 Configured , × Not configured , △ Option

GW-P PRO
GW80/92/115/130/137/176P

Command-&-Control-ConsoleSystem

EXPERT OF COST CONTROL HELP YOU HAVE A WONDERFUL BEGINNING

GW-P series is an economical type paper cutting machine developed by GW according to over 30 years paper cutting machine develop, produce experience and study, analyze of a large number of middle and small type customers’ requirements.

Based on the quality and safety, we adjust some functions of this machine to decrease the using cost and increase your competitive power.

Configuration and Parameter

  • An 19 inch industrial grade color touch screen

  • No limit clamp pressure adjustment system animation demonstrations

  • Secure and convenient knife change

  • Knife stick ejecting device

  • Centralization lubrication

  • Electrical cam option

  • Intensified air cushion working table

  • PLE grade safety standard, self-diagnosis PILZ safety module

  • Worm gear drive system, imported electronic cam, knife position detection system

  • Protective infrared light curtain with PLE Safety Standard

  • Seamless working table, ball screw, double guide

  • Optional German imported hydraulic system

  • Italy hydraulic pump

  • Casting part use resin sand, HT250/ HT300

  • Imported high accurate positioning servo system

  • Auto Lubricating Device

Configuration

Model GW80P GW92P GW115P GW130P GW137P GW176P
Size (cm) 80 92 115 130 137 176
15 inch screen 〇 〇 〇 〇 〇 〇
Touch screen 〇 △〇 △〇 △〇 △〇 △〇
Memory 256M 1K/process 256M 1K/process 256M 1K/process 256M 1K/process 256M 1K/process 256M 1K/process
Back gauge speed 36m 〇 〇 〇 〇 〇 〇
Double guide ball screw 〇 〇 〇 〇 〇 〇
Chromed air table 〇 〇 〇 〇 〇 〇
Large vice working table 1000 x 750mm * * △ * * *
Electric-magnet clutch 〇 〇 〇 〇 〇 〇
Hydraulic clutch, Italy gear pump * * * * * *
Automatic lubricating system 〇 〇 〇 〇 〇 〇
Optimized cutting 〇 〇 〇 〇 〇 〇
Self diagnose system 〇 〇 〇 〇 〇 〇
Clamp pressure programmable 〇 △ △ * * △
Rear table cover △ △ △ * * △
30kg safety pedal pressure 〇 〇 〇 〇 〇 △*

〇 Configured , × Not configured , △ Option

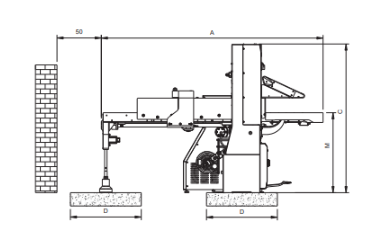

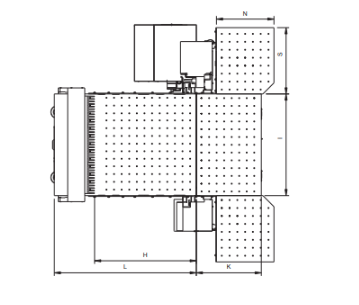

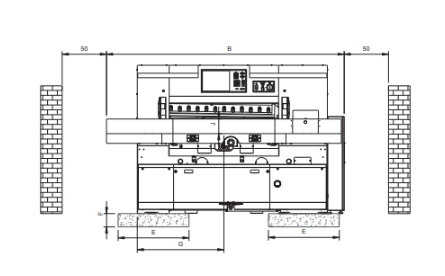

Installation Specification

Model Unit GW80 GW92 GW115 GW130 GW137 GW176
A Total machine length mm 1995(2115) 2070(2235) 2500(2600) 2640(3090) 2823(2923) 3480
B Total machine width mm 2105(2305) 2328(2478) 2680(3150) 2850(2950) 2900(3400) 3760
C Total machine height mm 1622 1622 1680 1622 1680 1730
D Groundsill length mm 700 700 750 750 750 800
E Groundsill height mm 700 700 750 750 750 800
F Groundsill thickness mm 150 150 200 200 200 250
G Machine half width mm 762 822 978 1012 1088 1288
Net weight kg 2200 2800 3800 3500 4500 7500
Packaging dimension mm 2250X1400X1850 2250X1400X1910 2650X1500X2000 2750X1400X1910 2950X1550X2000 3700X1600X2300

Technology Data

Model Unit 80 92 115 130 137 176
Maximum Cutting length mm 800 920 1150 1300 1450 2000
Maximum Cutting width mm 800 920 1150 1300 1370 1760
Maximum Cutting height mm 130 130 165 130 165 165
Min. Cutting size (without clamp) mm 20 25(22) 25 25 25 35
Min. Cutting size (with clamp) mm 55 90(70) 75 85 75 120
Length (cutting point to front table) mm 690 690 735 735 735 750
Length (cutting point to rear table) mm 1240 1360 1605 1765 1925 2620
Height (working table to ground) mm 900 900 900 900 900 900
Length of side table mm 485(650) 485(650) 650(750) 650(750) 650(750) 650(750)
Width of side table mm 600(750) 600(750) 750(1000) 750(1000) 750(1000) 750(1000)
Min. Clamp pressure KN 1.5 1.5 1.5 2 1.5 3
Max. Clamp pressure KN 30 30 45 40 45 70
Knife specification mm 12.7 12.7 13.75 12.7 13.75 13.75
Max. Grinding reserve mm 30 30 60 30 60 60
Cutting speed time/min 45 45 45 45 45 45
Main power kW 3 3 4 4 4 7.5
Voltage V 361-399 361-399 361-399 361-399 361-399 361-399
Wire size mm³ 2.5 2.5 2.5 2.5 2.5 4

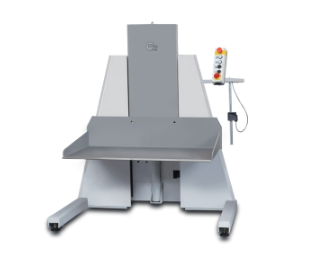

LT-1/LT-2/LT-3/LT-4
LIFTER

The machine can move piles up and down for convenience.

An operator can transfer material to a jogger or guillotine at a convenient height, which can increase cutting efficiency by 10%.

Installation Data

Model Unit LT-1 LT-2 LT-3 LT-4
Width (B) mm 1050 1610 1910 1950
Depth (A) mm 1170 1280 1550 1740
Height mm 1500 1500 1500 1640
Max. height mm 2100 2100 2100 2120
Net weight kg 500 630 770 1100
Power 3ph, 200V~240V, 50/60HZ
Max. power consumption A 4.6 4.6 6.45 6.45
Max. fuse current A 10 10 10 10
Voltage 3ph, 360V~420V, 50/60HZ
Max. power consumption A 2.8 2.8 3.8 3.8
Max. Electric current A 6 6 10 10

Specification

Model Unit LT-1 LT-2 LT-3 LT-4
Max. platform (Y) mm 620 840 1090 1240
Max. platform (X) mm 900 1270 1520 1700
Max. Height mm 850 850 900 900
Max. load capacity kg 450 1200 1200/2000 2000
(EN13023) Noise level dB 77.9 77.9 77.9 77.9
Packing size(L*D*H) mm 1370X1250X1800 1480X1810X1800 1750X2110X1800 1940X2150X1940

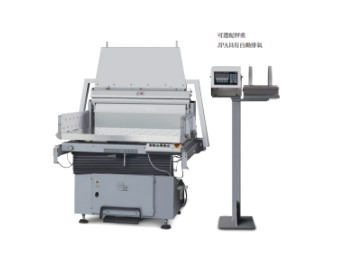

JPA-2 JOGGER

A jogger is a special machine for materials that are ready to be cut.

It helps align the material to be cut, making the cutting material more compact and neat.

It also greatly improves the accuracy of cutting.

Installation Data

Model Unit JPA-2
Width (C) mm 950/1550
Deep (D) mm 1290
Height mm 1100/1875
Net weight kg 550
Electric power voltage 3ph, 200V~240V, 50/60HZ
Power (Max) A 4
Max. Electric current A 10
Voltage 3ph, 360V~420V, 50/60HZ
Power (Max) A 3
Max. Electric current A 10

Specification

Model Unit JPA-2
Platform size (A) mm 900
Platform size (B) mm 1150
Stack height mm 165
Working table height mm 880~980
Packing size (L×W×H) mm 1750×1490×1300(2180)

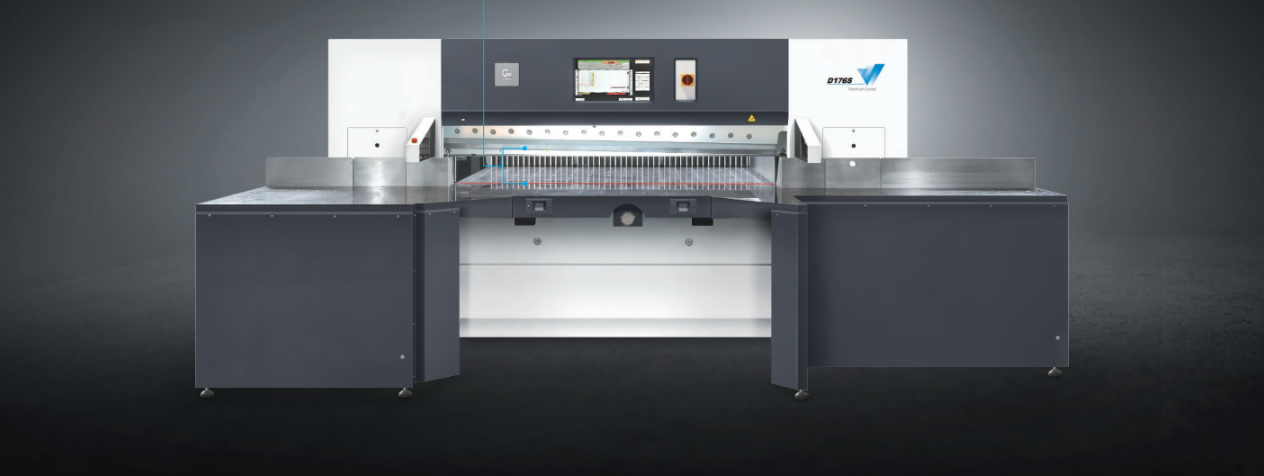

D176G / D176S / D176P
DOUBLE WORM GEAR SYSTEM PAPER CUTTING MACHINE

DataVideoImage-Processing

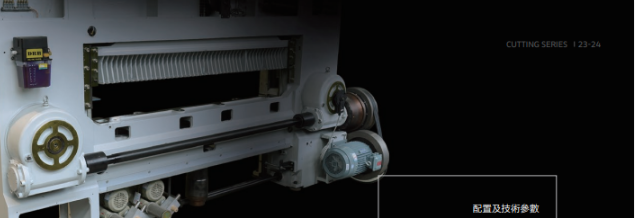

Advantages of D176 Double Worm Gear Machine:

Driven by left and right double worms. The cutting force will be doubled compared with the structure of common single worm structure.

Due to each worm on the left and right, the cutting force on both sides will be more balanced, and there will be no uneven force caused by transmission part from only one side.

Higher transmission efficiency.

Worm gear has longer service life.

For cutting large size and high strength paper products, double worm gear machine will have obvious advantages over single worm gear machine.

Clamp adopts intermediate transmission design, the overall force and the pressure will be more balanced.

The double-spring cam design is used to rebound the clamp, which overcomes the problem of uneven pressure caused by different paper heights, and improves the safety performance of the presser.

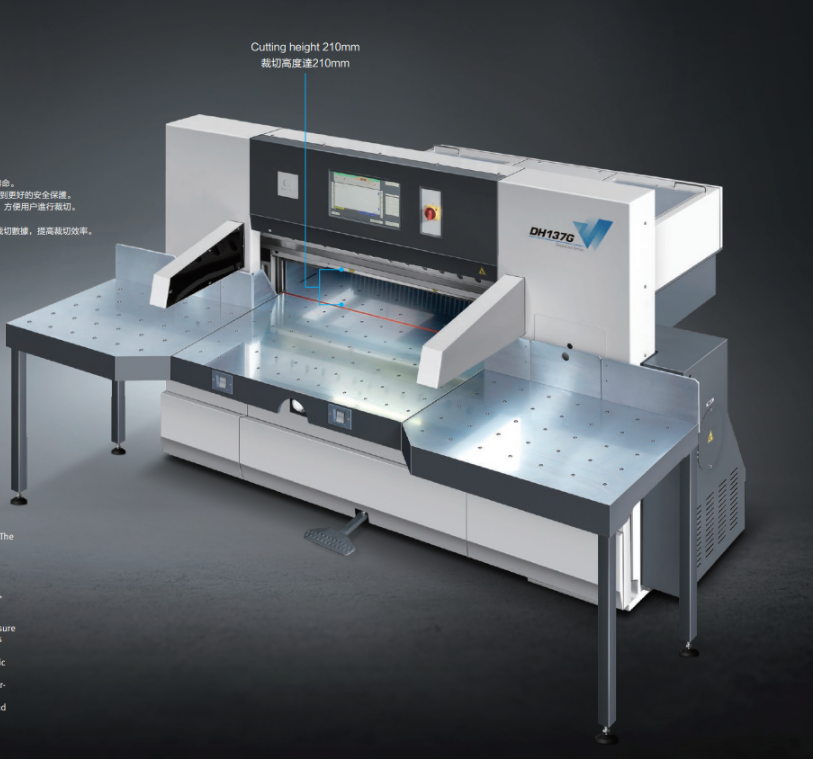

DH137SE / DH137G
DOUBLE WORM GEAR SYSTEM PAPER CUTTING MACHINE

VPX-Development-System

This machine is driven by twin-turbo of synchronous structure with large transmission power. The output power from twin-turbo of synchronous structure is even which can prolong life-span of machine effectively.

The cutter with twin-turbo breaks through the limit of the one with single-turbo, of which the cutting height could reach up to 210mm so that the cutting efficiency is greatly improved.

The pressure board adopts the center transmission structure and its pressure is overall even, which both improves the percent of pass of finished products and prolongs the life-span of machine.

The pressure board adopts dual spring structure. It increases the safety performance for pressure board to prevent one spring from fracture which will cause the machine falling down. It provides with better protection for operators' safety as well.

Equipped with large-size HD industrial touch screen (S-19, G-22), interactive interface, dynamic guidance of the cuttinsg sequence, convenient for users to cut.

Equipped with imported safety light curtain to greatly improve the safety and protection performance of machine.

Equipped with German advanced CIP4 cutting system. It generates cutting data directly by read PDF, JDF/JFG file on-line and without input the size information, which improves the cutting efficiency.

Configuration and Parameters

The newly designed pulling arm structure makes the adjustment much easier.

Integral frame structure, with stronger strength, stronger anti-deformation ability.

Double worm transmission structure.

Hydraulic clutch and electronic cam detection can ensure the reliable operation of the transmission part.

Centralized lubrication structure makes lubrication more convenient and faster.

The double spring cam structure ensures the pressure balance of the clamp from top to bottom all the time.

Intermediate hydraulic transmission mechanism makes the overall force of the clamp more balanced.

Humanized operation interface makes the operation more concise.

Air cushion chromium plating platform makes the operation more labor-saving, on the premise of ensuring service life.

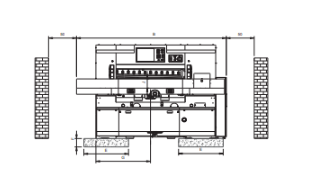

Installation Specification

Model Unit D176G D176S DH137SE DH137G
Total machine length mm 3870 3870 3185 3185
Total machine width mm 3760 3760 3370 3370
Total machine height mm 1730 1730 1800 1800
Groundsill length mm 3000 3000 750 750
Groundsill width mm 3300 3300 750 750
Groundsill thickness mm 250 250 200 200
Machine half width mm 1540 1540 1345 1345
Net weight kg 6200 6200 4800 4800
Packaging dimension 3700x1600x2300 3700x1600x2300 3600x1600x2100 3600x1600x2100

technology Data

Model Unit D176G D176S DH137SE DH137G
Model D176G D176S DH137SE DH137G
Max. Cutting length mm 2000 2000 1730 1730
Max. Cutting width mm 1760 1760 1370 1370
Max. Cutting height mm 165 165 210 210
Min. Cutting size (without fauce clamp) mm 35 35 25 25
Min. Cutting size (with fauce clamp) mm 120 120 95 95
Length (cutting point to front table) mm 750 750 755 755
Length (cutting point to rear table) mm 2620 2620 2205 2205
Height (working table to ground) mm 900 900 900 900
Length of side table mm 1000 1000 750 750
Width of side table mm 1000 1000 1000 1000
Min.Clamp pressure KN 3.0 3.0 2.0 2.0
Max.Clamp pressure KN 70 70 60 60
Knife specification mm 13.75 13.75 13.75 13.75
Max. Grinding reserve mm 60 60 60 60
Cutting speed time/min 45 45 45 45
Main power kW 7.5 7.5 5.5 5.5
Voltage V 361-399 361-399 316-399 316-399
Wire size mm² 4 4 2.5 2.5

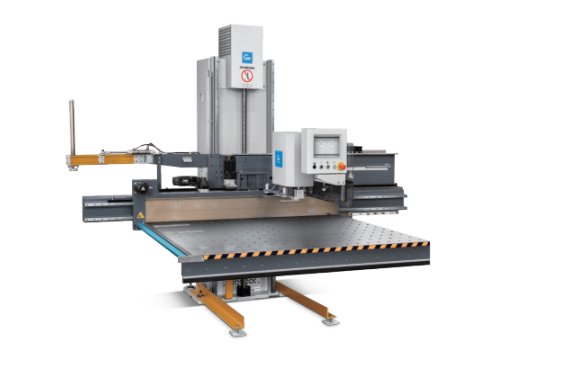

QT-2/QT-4
ECONOMICAL INTELLIGENT LOADER

Features:

  • Specific Software Components

  • Development for Command & Control Systems

  • Integration Middleware (Data Distribution System)

  • Software Assurance (Secure Separation Kernel Hypervisor Based)

Specifictions

Model Unit QT-2 QT-4
Machine width mm 3300 4450
Machine depth mm 1910 2560
Machine height mm 2412 2640
Net weight kg 1600 2500
Compressed Air bar 5-8 5-8
Air consumption L/Min 5 5
Power V/Hz 200-240,50/60 200-240,50/60
Power consumption(Max) kW 8.8 12
Max. fuse current A 16 25
Voltage V/Hz 360-420,50/60 360-420,50/60
Packing Size(W*D*H) mm 2700X2050X2487 2540X3500X2687

Installation Data

Model Unit QT-2 QT-4
Machine width mm 3300 4450
Machine depth mm 1910 2560
Machine height mm 2412 2640
Net weight kg 1600 2500
Compressed Air bar 5-8 5-8
Air consumption L/Min 5 5
Power V,HZ 200-240,50/60 200-240,50/60
Power consumption(Max) kW 8.8 12
Max. fuse current A 16 25
Voltage V,HZ 360-420,50/60 360-420,50/60
Packing Size(W*D*H) mm 2700x2050x2487 2540x2550x2687

QS-2/QS-4
ECONOMICAL INTELLIGENT LOADER

High-efficiency automatic unloading system designed for smooth, accurate, and reliable sheet handling.

SPECIFICATIONS

Model Unit Q5-2 Q5-4
Min. Format (Y) mm 400 600
Min. Format (X) mm 600 860
Max. Format (Y) mm 1100/1060 1300/1250
Max. Format (X) mm 1350 1480
Min. room height mm 55 55
Max. room height mm 166 166
Max. pile height mm 1600 1600
Carrying capacity kg 380 460
Loading time s 40-55 40-55
Noise Level dB 75 75

Installation Data

Model Unit QT-2 QT-4
Machine width mm 3300 4450
Machine depth mm 1910 2560
Machine height mm 2412 2640
Net weight kg 1600 2500
Compressed Air bar 5-8 5-8
Air consumption L/Min 5 5
Power V/Hz 200-240,50/60 200-240,50/60
Power consumption(Max) kW 8.8 12
Max. fuse current A 16 25
Voltage V/Hz 360-420,50/60 360-420,50/60
Packing Size(W*D*H) mm 2700X2050X2487 2540X3500X2687

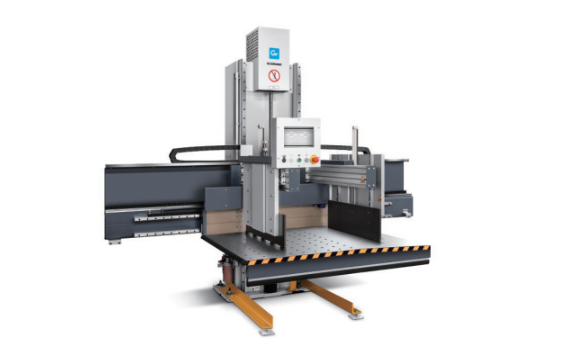

GT-2/GT-4
SMART UNLOADER

High-efficiency automatic unloading system designed for smooth, accurate, and reliable sheet handling.

SPECIFICATIONS

Model Unit QT-2 QT-4
Min. Format (Y) mm 400 600
Min. Format (X) mm 600 850
Max. Format (Y) mm 960, 920, 850 1350, 1250
Max. Format (X) mm 1200 1680
Min. ream height mm 55 55
Max. ream height mm 165 165
Max. pile height mm 1600 1600
Carrying capacity kg 300 480
Loading time s 40-55 40-55
Noise Level dB 75 75

INSTALLATION DATA

Model Unit GT-2 GT-4
Machine width mm 2850 4030
Machine depth mm 1810 2330
Machine height mm 2427 2640
Net weight kg 1440 2800
Compressed Air bar 5-8 5-8
Air consumption L/Min 5 5
Voltage V,HZ 200-240,50/60 360-240,50/60
Power consumption(Max) kW 8.8 12
Max fuse current A 16 25
Power V,HZ 360-420,50/60 360-420,50/60
Packing Size(W*D*H) mm 3050x1950x2250 4000x2450x3960

GS-2/GS-4
SMART UNLOADER

High-efficiency automatic unloading system designed for smooth, accurate, and reliable sheet handling.

SPECIFICATIONS

Model Unit GS-2 GS-4
Min. Format (Y) mm 400 500
Min. Format (X) mm 400 500
Max. format (Y) mm 1050 1240
Max. format (X) mm 1280 1650
Min. ream height mm 40 40
Max. ream height mm 165 165
Max. pile height mm 1600 1600
Carrying capacity kg 300 420
Unloading time S 30-40 30-40
Noise Level dB 75 75

INSTALLATION DATA

Model Unit GS-2 GS-4
Machine width mm 3240 4000
Machine depth mm 1807 2290
Machine height mm 2427 2640
Net weight kg 1440 2800
Compressed Air bar 5-8 5-8
Air consumption L/Min 5 5
Voltage V,HZ 200-240,50/60 200-240,50/60
Power consumption(Max) kW 8.8 12
Max fuse current A 16 25
Power V,HZ 360-420,50/60 360-420,50/60
Packing Size(W*D*H) mm 3150x2100x2250 4200x2450x3960

CONTACT US

Contact
BUSINESS QUERIES
HR Contact
