T 106 B / T 106 BF
Automatic die-cutting machine with blanking
(double cam gripper bar)

EMP-Shielded-Rooms-&-Control-Centers

A New Generation of T 106 B / T 106 BF

A new generation of T106 B has a number of new technologies and systems that will help you to improve efficiency significantly and bring competitive advantage.

It has the function of automatic separation of pressing boards with two sets of waste clearing.

Regardless of how the layout of the printing and the use of what kind of substrate, it can be used in high-speed operation to clear the waste, as well as to ensure the orderly separation of finished products.

The stripping chase adopts pneumatic automatic lifting up and down, and is provided with a standard quick-lock device and a center-line positioning function, which can make the preparation operation more quick and convenient.

The front and back operation interfaces use 19 inches LED touch screens, making the most complex settings become simple and intuitive, to maximize the efficiency of the equipment.

T 106 BF
Automatic die-cutting machine
with blanking(double cam gripper bar)

Guowang Group considers how to create higher quality products for you. With over 30 years of production experience and international advanced technology and craftsmanship, for efficient post-printing as a seasoned partner.

Feeder Unit

Specification of Feeder Unit

  • High quality feeder, 4 pick-up suckers and 4 forward suckers, ensure stable and fast feeding.

  • Pre-loading device to feed paper without stopping the machine, maximum stack height 1800mm.

  • Pre-loading tracks help the operator push paper stack to feeding position accurately and conveniently.

  • Side gauge can be adjusted to fit different paper.

  • Paper transferred to the front gauge will slow down to ensure accurate positioning.

  • Transferring plate is stainless steel made by the German mould to make the paper conveying smooth and fast.

Die Cutting Unit

Specification of Die-Cutting Unit

  • Adopt Japanese Fuji servo motor to realize precise and stable control of die-cutting pressure; precise adjustment of pressure can be realized through 19-inch touch screen, and the adjustment is accurate to 0.01mm.

  • The die-cutting plate frame and die-cutting lower backing plate are locked by SMC cylinders to avoid the situation that the upper and lower plate frames are not locked and installed in place, and effectively avoid the loss caused by man-made operation errors.

  • The die-cutting board frame adopts a plate-loading method that quickly locates the center line, so that the operator no longer needs to consider the left and right positions of the die-cutting board when installing the die-cutting board.

  • The die-cutting board can also be installed with non-standard size die-cutting boards through the use of auxiliary tools, which is convenient for customers to realize the common use of die-cutting boards of different models.

  • The gripper bar is provided by Komori Japan. It adopts the double-cam opening method, which can open the gripper and release the paper during operation, so that the paper can fall during the operation, reduce the inertia of the paper, and make the thin paper easier to pack.

Stripping Unit

Specification of Stripping Unit

  • Adopt pneumatic automatic up and down lifting function.

  • Using centralized positioning, quick lock system.

  • Stripping frame install position memorize function.

Delivery Unit

Specification of Delivery Unit

  • The delivery part adopts seamless and uninterrupted engagement.

  • Automatic paper stacking transfer can transport the work pallet to the finished paper delivery area, and then transfer the empty pallet to the paper delivery area of the machine for waiting, which can reduce manual intervention and ensure uninterrupted work transportation.

  • T106BF can achieve one-key conversion between stripping and blanking.

Installation Plan

The geometrical structure of the machine illustrates its design and operational flow in a clear and systematic manne

Specifications

Model Unit T 106 B T 106 BF
Maximum paper size mm 1060x760 1060x760
Minimum paper size mm 400x350 400x350
Maximum cutting size mm 1060x745 1060x745
Maximum die-cutting plate size mm 1075x765 1075x765
Die-cutting plate thickness mm 4+1 4+1
Cutting rule height mm 23.8 23.8
First die-cutting rule mm 13 13
Gripper margin mm 9-17 9-17
Card board spec g/m² 90-2000 90-2000
Card board thickness mm 0.1-3 0.1-3
Corrugated spec mm ≤4 ≤4
Maximum working pressure t 350 350
Maximum die-cutting speed S/H 7500 7500
Feeding board height (incl. pallet) mm 1800 1800
Non-stop feeding height (incl. pallet) mm 1300 1300
Delivery height (incl. pallet) mm 1400 1400
Main motor power kw 18 18.5
Whole machine power kw 24 24
Voltage v 380±5% 50HZ 380±5% 50HZ
Cable thickness mm² 16 16
Air pressure requirement bar 6-8 6-8
Air consumption L/Min 300 300

Installation Data

Model Unit T 106 B T 106 BF
Overall length mm 9800 9020
Overall width mm 6000 6055
Overall height mm 2700 2700
Platform length mm 9260 8230
Platform width mm 2500 2500
Machine length mm 7820 7270
Machine width mm 2260 2260
Platform-machine distance mm 435 /
Stack distance mm 1300 1300
Paper feeding reserve mm 3000 3000
Rear space reserve mm 2000 2600
Paper delivery reserve mm 2000 2000
Net weight t 23 23
Packing measurement length mm 8000 8000
Packing measurement width mm 2320 2320
Packing measurement height mm 2950 2950

T 106 Q
Automatic die-cutting machine
with stirpping (Double cam gripper bar)

EMP-FILTER

This machine combines the new technical advantages of T1060B and is the first model with stripping function in the domestic market.

Adopting double cam gripper technology, the clearance box can optionally use Japan Sankyo, making the machine more stable and reliable in operation, even during emergencies.

The stripping chase adopts an automatic pneumatic lifting function, quick-lock system, and center line alignment positioning system, making operation easier and more convenient.

The operating screen adopts a 19-inch HD LED touch screen, which makes the most complex settings simple and intuitive, greatly improving equipment efficiency.

The auxiliary delivery table is equipped with an automatic delivery function.

Feeder Unit

Optional (Marberg) feeder, suitable for almost all types of paper, including special materials such as cardboard and corrugated paper. Feeder can transport materials smoothly.

Automatic lubrication system

Separate control of cam and chain, automatic lubrication system. Through the touchscreen, you can set the time and quantity to lubricate.

Mainframe

Japan Sankyo index box. (Standard for T series)

Gripper margin

Japan's Komori company provides double-cam gripper technology and participates in co-manufacturing the entire system. Doublecam gripper technology can accurately control acceleration and deceleration. The movement of the gripper can be accurately controlled, Suitable for wider paper range and higher speed.

Stripping gripper side

The blanking system realize separation for the waste paper edge and product, complete the die cutting on the upper of delivery part to separate waste paper edge falling onto conveyor belt perfectly, which will be transferred out of machine transportation side.

Die-cutting unit

The die-cutting board frame and the die-cutting lower board are locked by cylinders. Avoid the situation that the upper and lower plate frames are not locked and installed in place, Effectively avoid losses caused by human operation errors.

Electric control part

This machine is used in famous brand electrical components, including PILZ safety relay, Muller relay, Schneider inverter contactor and air switch.

Dual screen display

The blanking and feeder unit adopt 19-inch touch screen, and the delivery unit adopt 10.4-inch touch screen. All the setting and function could be easily set through this touch screen. Unique operation system based on the special knowledge of the machine.

To Get the Perfect Products Quality

T 106 Q

High-end Standard Type, Improving Operational Automation. While ensuring product quality and operation safety, we have effectively reduced your usage costs and improved your production competitiveness.

T 106 QE

High-end Practical Type, Laying the Foundation for You. While ensuring product quality and operation safety, we have effectively reduced your usage costs and improved your production competitiveness.

T 106 QP

High-end Intelligent Type, Achieving Intelligent Operation. While ensuring product quality and operation safety, we have effectively reduced your usage costs and improved your production competitiveness.

To get the perfect products quality

Over the years, GW has been devoting itself to reducing paper scrap and improving product quality, in order to realize “reduce wasting of resources and produce high quality machinery.”

Installation Floor Plan

This geometrical structure allows a clear understanding of the machine’s flow and operation.

Specifications

Model Unit T106Q / T106QE / T106QP
Maximum paper size mm 1060x760
Minimum paper size mm 400x350
Maximum cutting size mm 1060x745
Maximum die-cutting plate size mm 1075x765
Die-cutting plate thickness mm 4+1
Cutting rule height mm 23.8
First die-cutting rule mm 13
Gripper margin mm 9-17
Card board spec g/m² 90-2000
Card board thickness mm 0.1-3
Corrugated spec mm ≤4
Maximum working pressure t 350
Maximum die-cutting speed S/H 7500
Feeding board height (incl. pallet) mm 1800
Non-stop feeding height (incl. pallet) mm 1300
Delivery height (incl. pallet) mm 1350
Main motor power kw 18
Whole machine power kw 21
Voltage v 380±5% 50HZ
Cable thickness mm² 10
Air pressure requirement bar 6-8
Air consumption L/Min 200

Installation Data

Item Unit T106Q / T106QE / T106QP
Overall length mm 6500
Overall width mm 4230
Overall height mm 2500
Platform length mm 6180
Platform width mm 2000
Machine length mm 6310
Machine width mm 2300
Paper feeding reserve mm 2500
Rear space reserve mm 1500
Paper delivery reserve mm 2000
Net weight t 19
Packing measurement length mm 6600
Packing measurement width mm 2520
Packing measurement height mm 2750

S 106 DYDY
Double unit automatic die cutting and bronzing machine

double-unit-die-cutting-bronzing

The double-station automatic hot foil-stamping and die-cutting machine is a high-end equipment developed by Guowang Machinery Group through customer feedback, combined with market demand and the latest scientific research technology from China and abroad. It provides an ideal solution for repeating foil-stamping or hot foil-stamping and stripping processes.

According to the needs of customers, the equipment can realize a variety of different combinations of large-area stamping, deep embossing, hot foil-stamping, die-cutting, and stripping, allowing flexible realization of different functions and significantly improving performance and configuration requirements. Optional configurations include German Mabeg, Schneider high-end inverter ATV930 series, and others.

The machine is equipped with a pneumatic quick lock system, high-precision servo pressure regulating system, and fine-tuning system to achieve short job change times, greatly improving work efficiency and saving production costs. The double-station automatic hot foil-stamping and die-cutting machine is the best choice for your large-area stamping products.

S 106 DYQ
The double-station automatic
hot foil-stamping and die-cutting machine

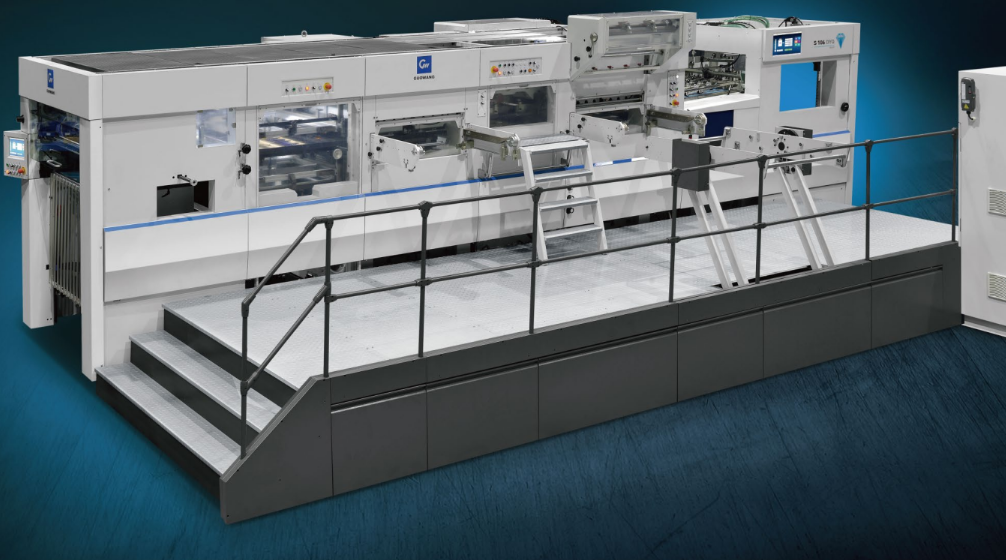

Screen-Doors

The double-station automatic hot foil-stamping and die-cutting machine is a high-end equipment developed by Guowang Machinery Group through customer feedback, combined with market demand and the latest scientific research technology from China and abroad. It provides an ideal solution for repeating foil-stamping or hot foil-stamping and stripping processes.

According to the needs of customers, the equipment can realize a variety of different combinations of large-area stamping, deep embossing, hot foil-stamping, die-cutting, and stripping, allowing flexible realization of different functions and significantly improving performance and configuration requirements. Optional configurations include German Mabeg, Schneider high-end inverter ATV930 series, and others.

The machine is equipped with a pneumatic quick lock system, high-precision servo pressure regulating system, and fine-tuning system to achieve short job change times, greatly improving work efficiency and saving production costs. The double-station automatic hot foil-stamping and die-cutting machine is the best choice for your large-area stamping products.

S 106 DHQ
The double-station automatic hot
foil-stamping and die-cutting machine

S 106 DHQ is a double-station automatic hot foil-stamping and die-cutting machine designed for high-efficiency and precise production.

Delivery unit

Adjustable platen brush controlled by AC motor to help unload and stack the paper from the gripper.

The delivery section can control the entire machine through a 10.4-inch touch screen.

Auxiliary delivery rack can realize non-stop delivery.

Die cutting & foil stamping unit

Longitudinal full-frame foil feeding system, which can hot stamp both longitudinally and transversely, reducing the amount of foil used and saving foil changing time.

The aluminum longitudinal axis can be increased to 6 axes according to customer needs, controlled by an independent servo, Yaskawa Servo System.

The gold foil can be pulled out from the machine for easy replacement. Maximum gold foil diameter: 250mm.

Both the vertical and horizontal directions are equipped with gold leaf separation blowing device, which is suitable for large-area hot stamping.

The man-machine interactive touch function can set the length of the gold foil pull out.

If the length of the gold foil is shorter than 6m, an alarm will be triggered, and the gold foil monitoring system can display the length of the remaining and used gold foil.

Installation Floor Plan

S 106 DHQ is a double-station automatic hot foil-stamping and die-cutting machine designed for high-efficiency and precise production.

Specifications

Item Unit S106 DY/D S106 DYQ S106 DHQ
Maximum paper size mm 1060×760 1060×760 1060×760
Minimum paper size mm 400×350 360×360 400×350
Maximum cutting size mm 1045×745 1045×745 1045×745
Maximum die-cutting plate size mm 1072×760 1020×740 1072×740
Die-cutting plate thickness mm 3±0.1 3±0.1 3±0.1
Cutting rule height mm 23.8 23.8 23.8
First die-cutting rule mm 13 13 13
Gripper margin mm 9-17 9-17 9-17
Card board spec g/m² 90-2000 90-2000 90-2000
Card board thickness mm 0.1-3 0.1-3 0.1-3
Corrugated spec mm ≤8 ≤8 ≤8
Maximum working pressure t 550-650 320-550 320-550
Maximum die-cutting speed S/H 5000 5500 5500
Feeding board height (incl. pallet) mm 1650 1650 1650
Delivery height (incl. pallet) mm 1350 1350 1250
Main motor power kw 22 15 15
Whole machine power kw 30 20 20
Voltage v 380±5% 50HZ 380±5% 50HZ 380±5% 50HZ
Cable thickness mm² 25-35 25-35 6-8
Air pressure requirement bar 6-8 6-8 6-8
Air consumption L/Min 600 600 600

Installation Data

Item Unit S106 DY/D S106 DYQ S106 DHQ
Paper feeding reserve mm 3000 3000 3000
Rear space reserve mm 2000 2000 2000
Paper delivery reserve mm 2500 2500 2500
Overall length mm 8500 8500 8500
Overall width mm 5400 5400 5400
Overall height mm 2660 2660 2660
Feeding Unit Length mm 2512 2512 2512
The length of the first main (die-cutting) unit mm 1527 1527 1527
The length of the first main (stamping) unit mm 901 901 901
The length of the second (die-cutting) unit mm 1160 1160 1160
The length of stamping / stripping unit mm 1067 1067 1067
Delivery Unit Length mm 1276 1276 1276
Machine Width mm 2900 2900 2900
Walking Pedal Platform Width mm 250 250 250
Net weight t 37 37 37
Packing measurement length mm 8800 8800 8800
Packing measurement width mm 2230 2230 2230
Packing measurement height mm 2530 2530 2530
