Mil Grade Control System

GD1500-2 / GD1700-2
Servo Precision High Speed Sheet Cutter

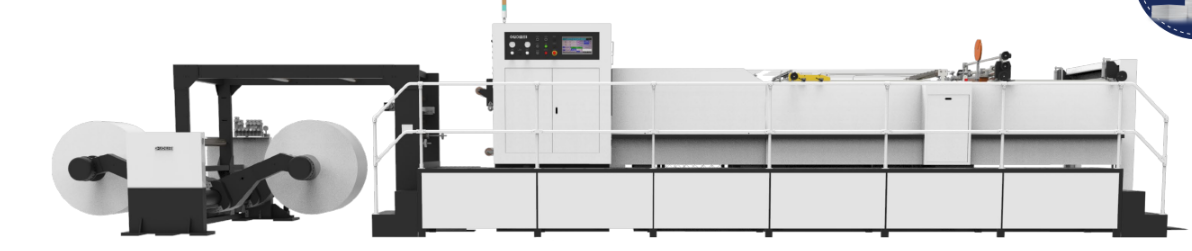

servo-precision-high-speed-sheet-cutterloader-machine-series

Servo Precision High Speed Sheet Cutter apply the advanced imported technique. The servo motor, AC transducer, the conveyor belt and pneumatic vibrator apply international brand; the electrical system adopts SCHNEIDER & OMRON to make the cutting speed fast and stable. Germany precise bearing and cutting knife assure the high cutting precision.

The touching screen makes the operation easy. The anti-curve rack assure the paper flat. This machine is the paper processing machine which is very popular in the paper making and printing industry. It can improve the efficiency and benefit of your work.

    Features

  • Imported AC servo and PLC control system are adopted to make the cutting speed of the machine faster, more accurate and more stable.

  • 15-inch human-machine screen dual touch screen (with Internet of Things), and has a self-diagnostic function, making the operation simple and convenient.

  • With recurve structure to make the paper flat and smooth.

  • This machine is suitable for a wide range of applications, such as cardboard, coated paper, kraft paper, cultural paper, double-coated paper, gold and silver cardboard, tobacco and alcohol packaging paper, aluminum foil paper, laser paper etc.

  • The King of Paper has a wide range of applications, saves time, materials and people.

  • The cut surface has no burrs, and it can directly reach the standard of the offset printing machine without trimming again.

Technical Parameters

Model GD1500-2 GD1700-2
Cutting type Double rotary sheeter Double rotary sheeter
Applicable range of paper 45-550g/m² 45-550g/m²
Max. paper roll diameter 1800mm 1800mm
Max. paper-cutting width 1500mm 1700mm
Range of cutting length 450-1650mm 450-1700mm
Cutting sheet number 2 sheet 2 sheet
Cutting precision ≤1000mm: ±0.25mm
>1000mm: ±0.1%		 ≤1000mm: ±0.25mm
>1000mm: ±0.1%
Max. cutting speed 350 cut/min 350 cut/min
Max. feeding speed 350 m/min 350 m/min
Max. paper stacking height 1600mm 1600mm
Air pressure source requirement 0.8MPa 0.8MPa
Power 380V*50HZ 380V*50HZ
Gross weight 22000KGS 25000KGS
Full-load power 78kw 95kw
Dimensions 14000×4300×2350mm 14000×4600×2350mm

1500F-2 / 1700F-2
Servo Precision High Speed Sheet Cutter

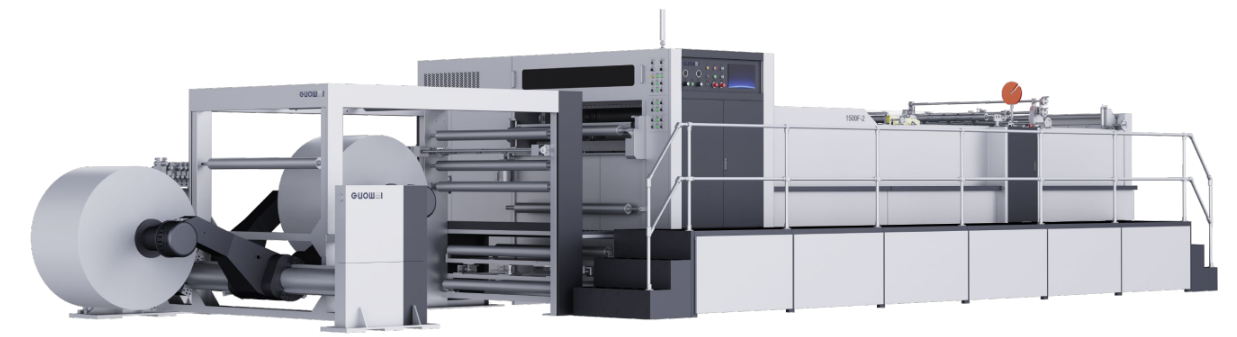

servo-precision-high-speed-sheet-cutter-two

Servo Precision High Speed Sheet Cutter apply the advanced imported technique. The servo motor, AC transducer, the conveyor belt and pneumatic vibrator apply international brand; the electrical system adopts SCHNEIDER & OMRON to make the cutting speed fast and stable. Germany precise bearing and cutting knife assure the high cutting precision.

The touching screen makes the operation easy. The anti-curve rack assure the paper flat. This machine is the paper processing machine which is very popular in the paper making and printing industry. It can improve the efficiency and benefit of your work.

    Features

  • Imported AC servo and PLC control system are adopted to make the cutting speed of the machine faster, more accurate and more stable.

  • 10-inch human-machine screen dual touch screen (with Internet of Things), and has a self-diagnostic function, making the operation simple and convenient.

  • With recurve structure to make the paper flat and smooth.

  • This machine is suitable for a wide range of applications, such as cardboard, coated paper, kraft paper, cultural paper, double-coated paper, gold and silver cardboard, tobacco and alcohol packaging paper, aluminum foil paper, laser paper etc.

  • The King of Paper has a wide range of applications, such as cardboard, coated paper, kraft paper, cultural paper, double-coated paper, gold and silver cardboard, tobacco and alcohol packaging paper etc.

  • It is free of shafts, no burrs, and it can directly reach the standard of the offset printing machine without trimming again, which saves time, materials and manpower.

Technical Parameters

Model 1500F-2 1700F-2
Cutting type Double rotary sheeter Double rotary sheeter
Applicable range of paper 60-550g/m² 60-550g/m²
Max. paper roll diameter 1800mm 1800mm
Max. paper-cutting width 1500mm 1700mm
Range of cutting length 450-1650mm 450-1650mm
Cutting sheet number 2 sheet 2 sheet
Cutting precision ≤1000mm: ±0.3mm
>1000mm: ±0.1%		 ≤1000mm: ±0.3mm
>1000mm: ±0.1%
Max. cutting speed 350 cut/min 350 cut/min
Max. feeding speed 350 m/min 350 m/min
Max. paper stacking height 1600mm 1600mm
Air pressure source requirement 0.8MPa 0.8MPa
Power 380V*50HZ 380V*50HZ
Gross weight 18000KGS 20000KGS
Full-load power 78kw 95kw
Dimensions 13100×4000×2465mm 13100×4200×2465mm

GD1500-4/6 GD1700-4/6
Servo Precision High Speed Sheet Cutter

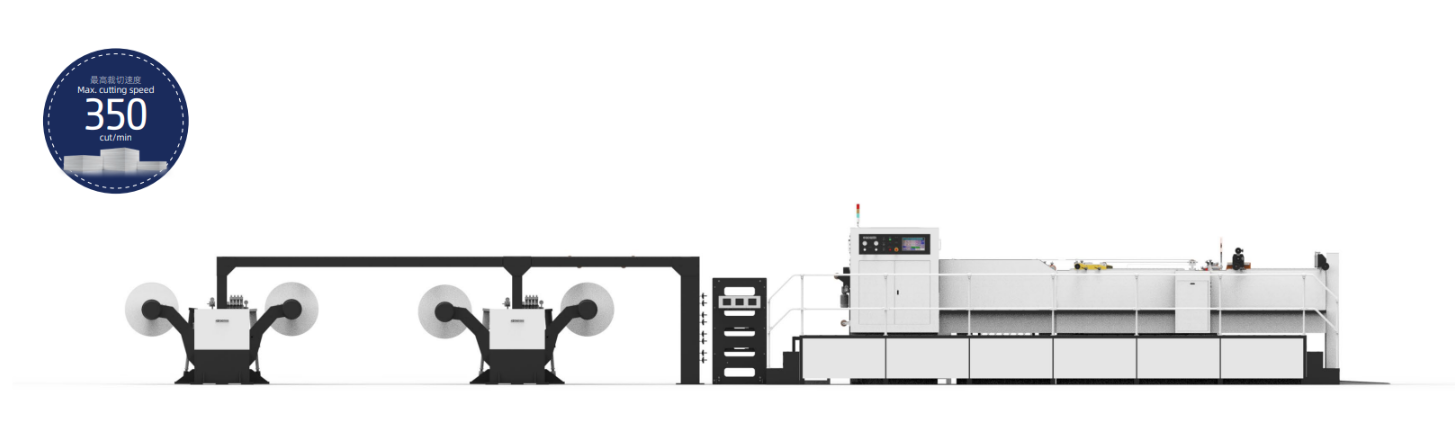

Command-&-Control-ConsoleSystem

Imported AC servo and PLC control system are adopted to make the cutting speed of the machine faster, more accurate and more stable.

15-inch human-machine screen dual touch screen (with Internet of Things), and has a self-diagnostic function, making the operation simple and convenient.

With recurve structure to make the paper flat and smooth.

This machine is suitable for a wide range of applications, such as cardboard, coated paper, kraft paper, cultural paper, double-coated paper, gold and silver cardboard, tobacco and alcohol packaging paper, aluminum foil paper, laser paper etc.

The King of Paper has a wide range of applications, such as cardboard, coated paper, kraft paper, cultural paper, double-coated paper, gold and silver cardboard, tobacco and alcohol packaging paper etc.

The cut surface has no burrs, and it can directly reach the standard of the offset printing machine without trimming again, which saves time, materials and people.

Technical Parameters

Model GD1500-4/6 GD1700-4/6
Cutting type Double rotary sheeter Double rotary sheeter
Applicable range of paper 45-550g/m² 45-550g/m²
Max. paper roll diameter 1800mm 1800mm
Max. paper-cutting width 1500mm 1700mm
Range of cutting length 450-1650mm 450-1700mm
Cutting sheet number 2 sheet 2 sheet
Cutting precision ≤1000mm: ±0.25mm
>1000mm: ±0.1%		 ≤1000mm: ±0.25mm
>1000mm: ±0.1%
Max. cutting speed 350 cut/min 350 cut/min
Max. feeding speed 350 m/min 350 m/min
Max. paper stacking height 1600mm 1600mm
Air pressure source requirement 0.8MPa 0.8MPa
Power 380V*50HZ 380V*50HZ
Gross weight 24000KGS / 26000KGS 27000KGS / 29000KGS
Full-load power 90kw 95kw
Dimensions 18600/23200×4300×2350mm 18600/23200×4600×2350mm

GW1400-2 / GW1700-2
Servo Precision High Speed Sheet Cutter

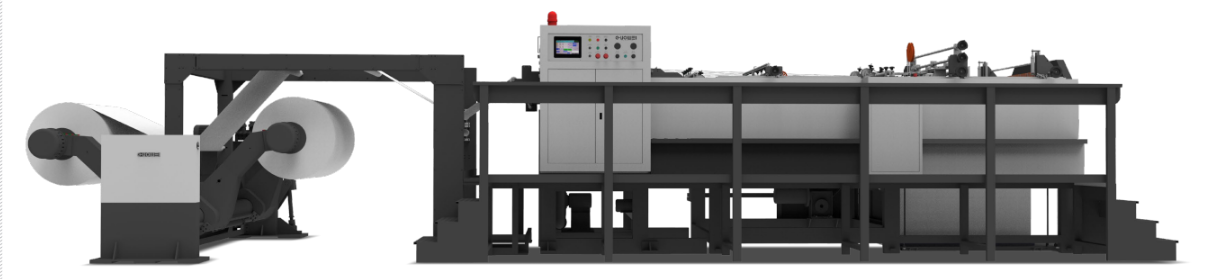

servo-precision-high-speed-sheet-cutter-gw-machine

Imported AC servo and PLC control system are adopted to make the cutting speed of the machine faster, more accurate and more stable.

10-inch human-machine screen double touch screen (with Internet of Things), and has a self-diagnostic function, making the operation simple and convenient.

With recurve structure to make the paper flat and smooth.

This machine is suitable for a wide range of applications, such as cardboard, coated paper, kraft paper, cultural paper, double-coated paper, gold and silver cardboard, tobacco and alcohol packaging paper, aluminum foil paper, laser paper etc. The King of Paper has a wide range of applications, such as cardboard, coated paper, kraft paper, cultural paper, double-coated paper, gold and silver cardboard, tobacco and alcohol packaging paper etc.

Technical Parameters

Model GW1400-2 GW1700-2
Cutting type Single rotary sheeter Single rotary sheeter
Applicable range of paper 45-550g/m² 45-550g/m²
Max. paper roll diameter 1800mm 1800mm
Max. paper-cutting width 1400mm 1700mm
Range of cutting length 450-1650mm 450-1670mm
Cutting sheet number 2 sheet 2 sheet
Cutting precision ≤1000mm: ±0.5mm ≤1000mm: ±0.5mm
Max. cutting speed 300 cut/min 300 cut/min
Max. feeding speed 300 m/min 300 m/min
Max. paper stacking height 1500mm 1500mm
Air pressure source requirement 0.8MPa 0.8MPa
Power 380V*50HZ 380V*50HZ
Gross weight 11500KGS 13500KGS
Full-load power 26kw 30kw
Dimensions 12000×3920×2300mm 12000×4200×2300mm

GW1400-4/6 GW1700-4/6
Servo Precision High Speed Sheet Cutter

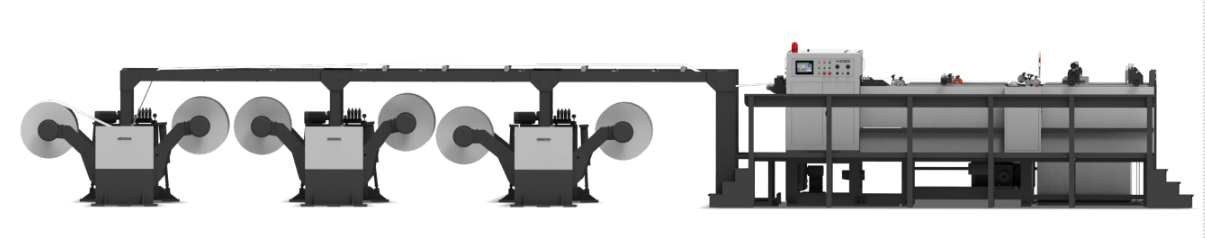

servo-precision-high-speed-sheet-cutter-four

Imported AC servo and PLC control system are adopted to make the cutting speed of the machine faster, more accurate and more stable.

10-inch human-machine screen double touch screen (with Internet of Things), and has a self-diagnostic function, making the operation simple and convenient.

With recurve structure to make the paper flat and smooth.

This machine is suitable for a wide range of applications, such as cardboard, coated paper, kraft paper, cultural paper, double-coated paper, gold and silver cardboard, tobacco and alcohol packaging paper, aluminum foil paper, laser paper etc.

The King of Paper has a wide range of applications, such as cardboard, coated paper, kraft paper, cultural paper, double-coated paper, gold and silver cardboard, tobacco and alcohol packaging paper etc.

Technical Parameters

Model GW1400-4/6 GW1700-4/6
Cutting type Single rotary sheeter Single rotary sheeter
Applicable range of paper 45-550g/m² 45-550g/m²
Max. paper roll diameter 1800mm 1800mm
Max. paper-cutting width 1400mm 1700mm
Range of cutting length 450-1650mm 450-1670mm
Cutting sheet number 2 sheet 2 sheet
Cutting precision (Cutting length) ≤1000mm:±0.5mm (Cutting length) ≤1000mm:±0.5mm
Max. cutting speed 300 cut/min 300 cut/min
Max. feeding speed 300 m/min 300 m/min
Max. paper stacking height 1500mm 1500mm
Air pressure source requirement 0.8MPa 0.8MPa
Power 380V*50HZ 380V*50HZ
Gross weight 14500KGS/17500KGS 16500KGS/19500KGS
Full-load power 26kw/30kw 30kw/34kw
Dimensions 16600/21200x3920x2300mm 16600/21200x4200x2300mm

Product Advantage Technology

  • Adopt Imported Electric compents such as Schneider, Panasonic, inovance and Idec .

  • Reducer and chain lift

  • The pneumatic slitting knife set adopts a one-piece design and closely cooperates with the dovetail slide rail.

  • Floating aluminum roller deviation correction device .

  • Equipped with high-precision spiral device and alloy steel blade

  • Equipped with label inserting device, and adjustable function of receiving paper vibration.

  • Adapt sun wheel paper delivery device and rubber roller to press paper .

  • Imported electrical components such as Schneider, Panasonic, and LS are adopted for the whole CE system.

  • Conveyor belt from China, Japan, Germany, timing belt from Swiss and other joint venture brands.

  • Servo high-precision double screw device, equipped with European servo drive.

  • Equipped with two-speed conveyor belt device and mesh belt device .

  • Equipped with automatic lifting function of delivery baffle

  • The control system is from Beckhoff German, the main electrical components is from Schneider French and other brands.
